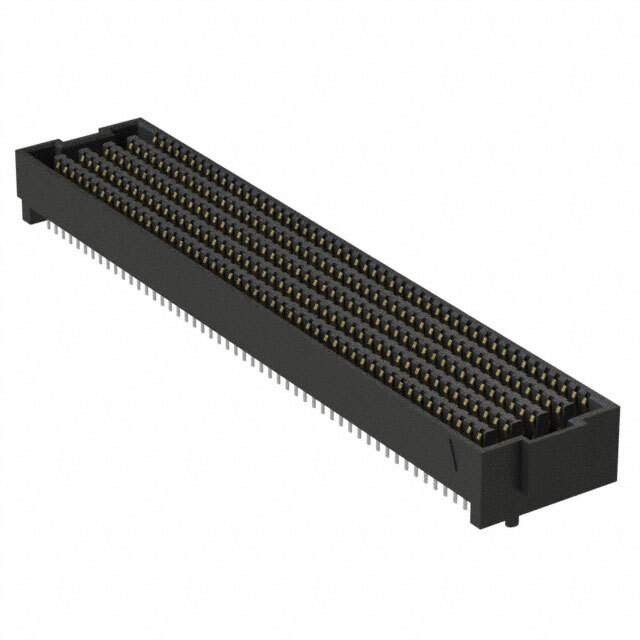

SEAF-50-05.0-L-10-2-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-50-05.0-L-10-2-A-K-TR

Part No SEAF-50-05.0-L-10-2-A-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-50-05.0-L-10-2-A-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type High Density Array, Female
Number of Positions 500
Pitch 0.050" (1.27mm)
Number of Rows 10
Mounting SMD (SMT)
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board 0.199" (5.05mm)
Base Product Number SEAF-50
Other Names SAM15052TR,SAM15052DKR,SAM15052DKRINACTIVE,SAM15052CT,SAM15052DKR,SEAF-50-05.0-L-10-2-A-K-TR,SEAF-50-05.0-L-10-2-A-K-FR
Standard Package 275
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293839-SEAF-50-05.0-L-10-2-A-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-50-05.0-L-10-2-A-K-TR CAD Model

Description

The SEARAY™ SEAF series from Samtec Inc. is a high-density array, female connector type with a pitch of 0.050" (1.27mm).

  • Series: SEARAY™ SEAF
  • Connector Type: High-Density Array, Female
  • Pitch: 0.050" (1.27mm)
  • Positions: 500
  • Features: Board Guide and Pick and Place
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Packaging: Tape & Reel (TR), Cut Tape (CT)
  • Mated Stacking Heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, and 18mm
  • Height Above Board: 0.199" (5.05mm)
  • Mounting: SMD (SMT)
  • Standard Package: 275
  • ECCN: EAR99
