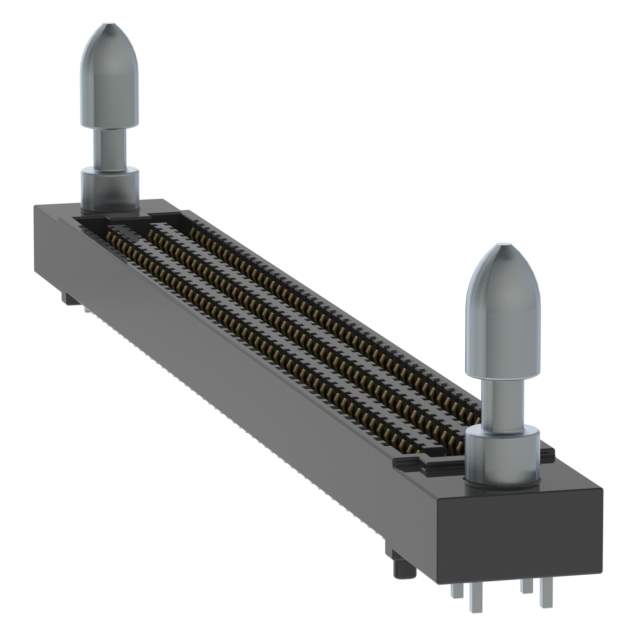

SEAF-50-05.0-S-06-1-A-LP-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-50-05.0-S-06-1-A-LP-K-TR

Part No SEAF-50-05.0-S-06-1-A-LP-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-50-05.0-S-06-1-A-LP-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 300
Pitch 0.050" (1.27mm)
Number of Rows 6
Mounting SMD (SMT)
Features Board Guide, Latches, Pick and Place
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board 0.199" (5.05mm)
Base Product Number SEAF-50
Standard Package 100
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293637-SEAF-50-05.0-S-06-1-A-LP-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-50-05.0-S-06-1-A-LP-K-TR CAD Model

Description

The SEARAY™ SEAF series female high-density array connector is an ideal solution for board-to-board interconnect applications.

  • Positions: 300
  • Pitch: 0.050" (1.27mm)
  • Features: board guide, latches and pick and place features
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Packaging: tape and reel
  • Mated Stacking Heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, and 18mm
  • Height Above Board: 0.199" (5.05mm)
  • Mounting: SMD (SMT) technology
  • Applications: computer peripherals, telecommunications, and networking
