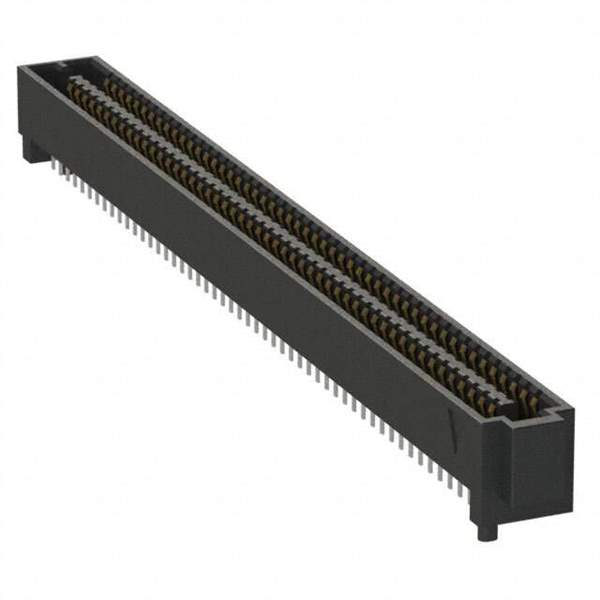

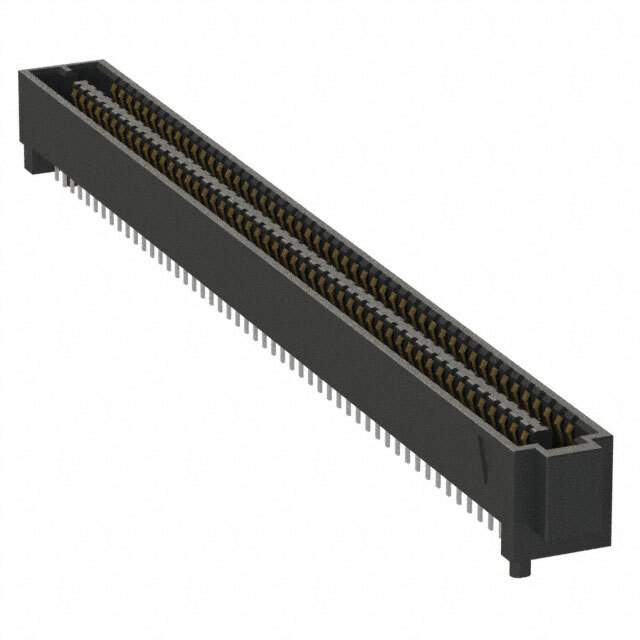

Same model may have multiple batches, images only for reference.

SEAF-50-06.5-L-04-1-A-K-TR

Name: SEAF-50-06.5-L-04-1-A-K-TR
Brand: Samtec Inc.
SKU: 1293702
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-50-06.5-L-04-1-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-50-06.5-L-04-1-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	200
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, 19.5mm
Height Above Board	0.258" (6.55mm)
Base Product Number	SEAF-50
Standard Package	325
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293702-SEAF-50-06.5-L-04-1-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-50-06.5-L-04-1-A-K-TR CAD Model

Alternative Products

Description

The Samtec SEAF-50-06.5-L-04-1-A-K-TR is a high density array, female connector with 200 positions and a pitch of 0.050 inches.

Positions: 200
Pitch: 0.050 inches
Board Guide: Yes
Pick and Place: Yes
Contact Finish: Gold with a thickness of 10.0μin
Package: Tape and Reel
Standard Package: 325
Mated Stacking Heights: 8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, 19.5mm
Height Above Board: 0.258 inches
Mounting: SMD (SMT)
ECCN: EAR99
