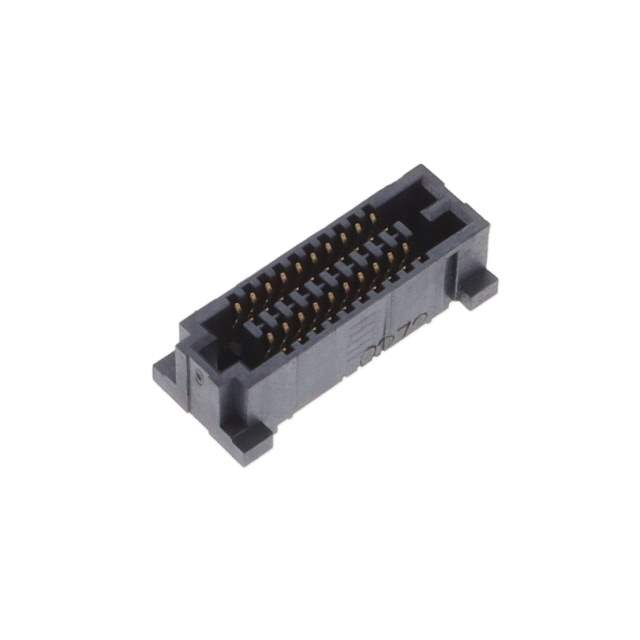

SEAF8-10-05.0-S-04-2 Real Image
Same model may have multiple batches, images only for reference.

SEAF8-10-05.0-S-04-2

Part No SEAF8-10-05.0-S-04-2
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF8-10-05.0-S-04-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 40
Pitch 0.031" (0.80mm)
Number of Rows 4
Mounting SMD (SMT)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 7mm, 10mm
Height Above Board 0.180" (4.57mm)
Base Product Number SEAF8-10
Standard Package 125
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293602-SEAF8-10-05.0-S-04-2
Ultra Librarian 3D Model Ultra Librarian SEAF8-10-05.0-S-04-2 CAD Model

Description

The SEARAY™ SEAF8-10-05.0-S-04-2 from Samtec Inc. is a high-density array, female connector type with a pitch of 0.031" (0.80mm).

  • Positions: 40
  • Rows: 4
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Application: board-to-board mezzanine applications
  • Package: tape and reel
  • Height Above Board: 0.180" (4.57mm)
  • Mated Stacking Heights: 7mm and 10mm
