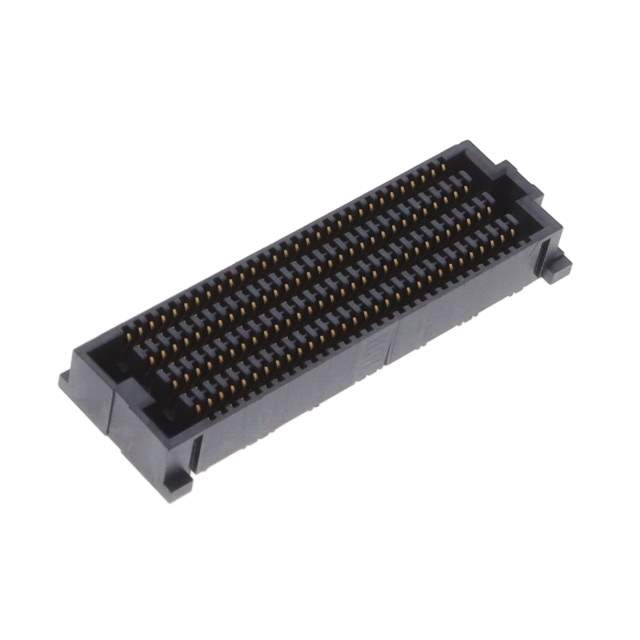

Same model may have multiple batches, images only for reference.

SEAF8-30-05.0-S-08-2

Get a Quote

Part No	SEAF8-30-05.0-S-08-2
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF8-30-05.0-S-08-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	240
Pitch	0.031" (0.80mm)
Number of Rows	8
Mounting	SMD (SMT)
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 10mm
Height Above Board	0.180" (4.57mm)
Base Product Number	SEAF8-30
Standard Package	125
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293675-SEAF8-30-05.0-S-08-2
Ultra Librarian 3D Model	Ultra Librarian SEAF8-30-05.0-S-08-2 CAD Model

Alternative Products

Description

The 1293675-SEAF8-30-05.0-S-08-2 is a rectangular connector that is part of the SEARAY SEAF series.

Manufacturer: Samtec Inc.
Positions: 240
Connector Type: High-density array, female
Rows: 8
Contact Finish: Gold
Pitch: 0.031” (0.80mm)
Packaging: Tape and Reel (TR)
Height Above Board: 0.180” (4.57mm)
Mounting: SMD (SMT)
Insulation Material: Liquid Crystal Polymer (LCP)
