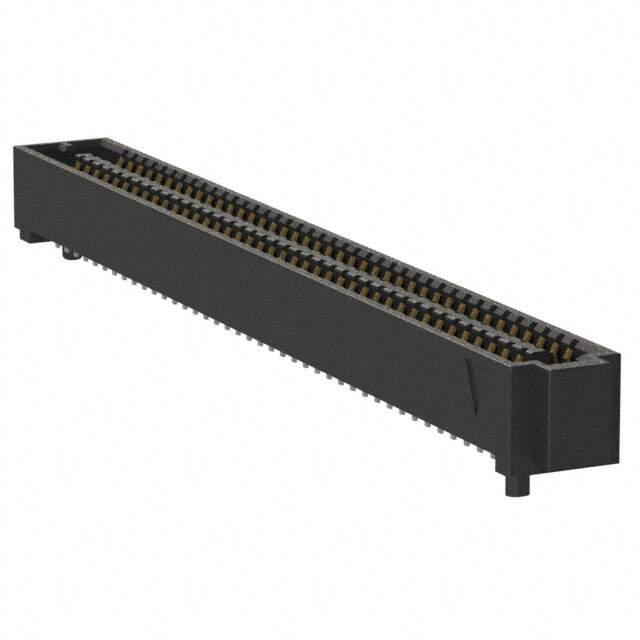

SEAF8-40-05.0-S-04-2 Real Image
Same model may have multiple batches, images only for reference.

SEAF8-40-05.0-S-04-2

Part No SEAF8-40-05.0-S-04-2
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF8-40-05.0-S-04-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tray
Connector Type High Density Array, Female
Number of Positions 160
Pitch 0.031" (0.80mm)
Number of Rows 4
Mounting SMD (SMT)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 7mm, 10mm
Height Above Board 0.180" (4.57mm)
Base Product Number SEAF8-40
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293553-SEAF8-40-05.0-S-04-2
Ultra Librarian 3D Model Ultra Librarian SEAF8-40-05.0-S-04-2 CAD Model

Description

The Samtec Inc. SEAF8-40-05.0-S-04-2 is a rectangular connector that is widely used in various electronic applications.

  • Connector Type: High-density array, edge-type, mezzanine connector
  • Connector Type: Female connector type
  • Positions: 160
  • Pitch: 0.031" (0.80mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
