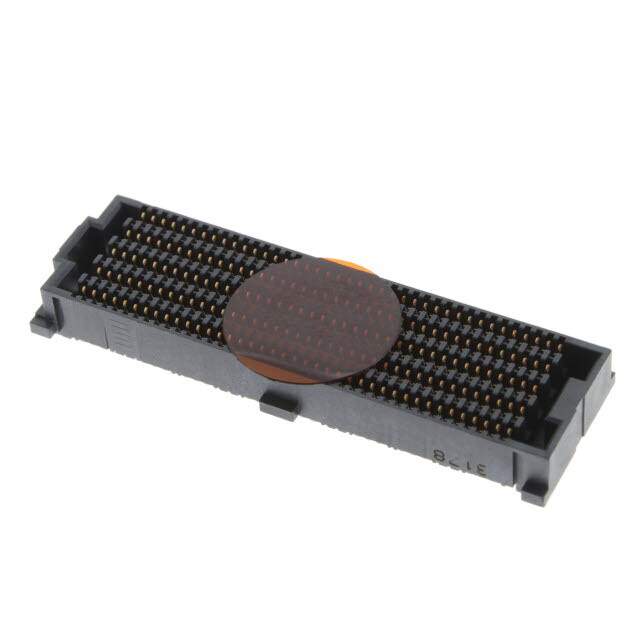

Same model may have multiple batches, images only for reference.

SEAF8-40-05.0-S-10-2-K

Name: SEAF8-40-05.0-S-10-2-K
Brand: Samtec Inc.
SKU: 1293928
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF8-40-05.0-S-10-2-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF8-40-05.0-S-10-2-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Cut Tape (CT)
Product Status	Obsolete
Connector Type	High Density Array, Female
Number of Positions	400
Pitch	0.031" (0.80mm)
Number of Rows	10
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 10mm
Height Above Board	0.180" (4.57mm)
Base Product Number	SEAF8-40
Other Names	SAM12812CT,SEAF8-40-05.0-S-10-2-K,SAM12812TR
Standard Package	275
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293928-SEAF8-40-05.0-S-10-2-K
Ultra Librarian 3D Model	Ultra Librarian SEAF8-40-05.0-S-10-2-K CAD Model

Alternative Products

Description

The 1293928-SEAF8-40-05.0-S-10-2-K is a rectangular connector that is designed to operate with a pitch of 0.031" (0.80mm).

Connector Type: High-density array, female
Positions: 400
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Package: Cut tape
Standard Package: 275
Temperature Range: -55°C to 125°C
Height Above Board: 0.180" (4.57mm)
Mated Stacking Height: 7mm and 10mm
Features: Board guide and pick and place
