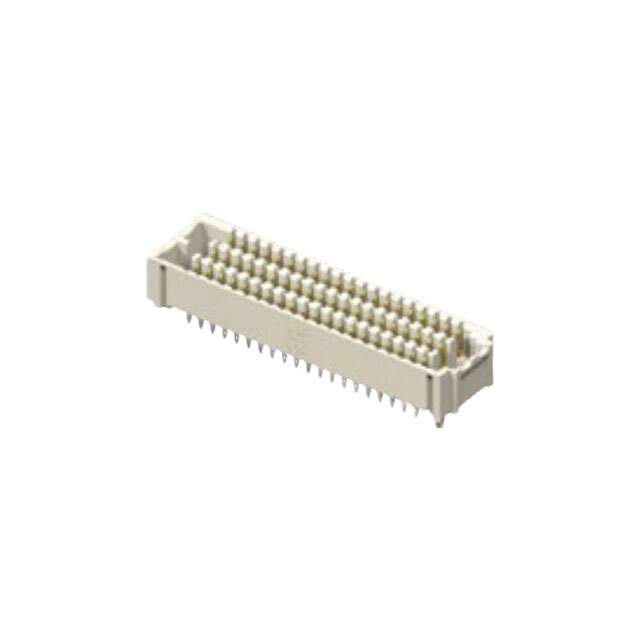

Same model may have multiple batches, images only for reference.

SEAFP-50-01-S-10-RA-WT-GP

Name: SEAFP-50-01-S-10-RA-WT-GP
Brand: Samtec Inc.
SKU: 1293531
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAFP-50-01-S-10-RA-WT-GP
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAFP-50-01-S-10-RA-WT-GP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAFP
Package	Tray
Connector Type	High Density Array, Female
Number of Positions	500
Pitch	0.050" (1.27mm)
Number of Rows	10
Mounting Type	Through Hole, Right Angle, Press-Fit
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Base Product Number	SEAFP-50
Standard Package	21
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293531-SEAFP-50-01-S-10-RA-WT-GP
Ultra Librarian 3D Model	Ultra Librarian SEAFP-50-01-S-10-RA-WT-GP CAD Model

Alternative Products

Description

The SEARAY™ SEAFP high density array, female connector is a rectangular connector array that is designed for board-to-board and cable-to-board applications.

Board Guide: Yes
Mounting Type: Right Angle Press-Fit
Package: Tray
Positions: 500
Rows: 10
Pitch: 0.050 inches (1.27mm)
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Model: SEAFP-50
Applications: Communication equipment, medical equipment, and automotive electronics
