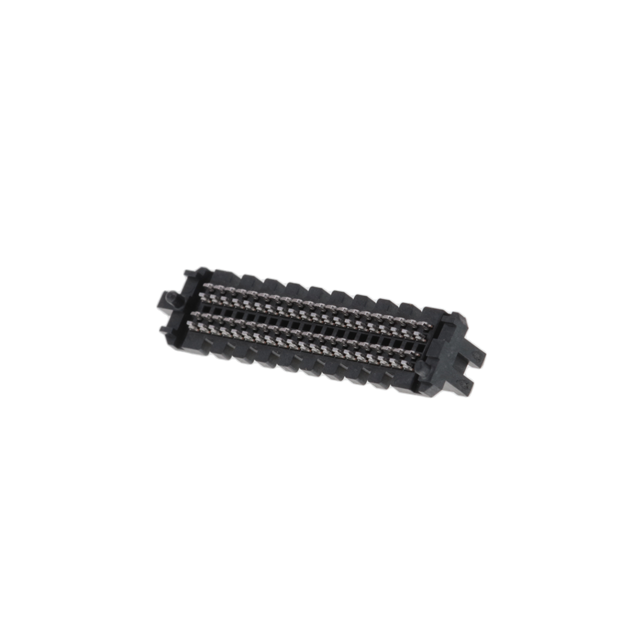

SEAM-20-02.0-S-04-1-A-K-TR

Name: SEAM-20-02.0-S-04-1-A-K-TR
Brand: Samtec Inc.
SKU: 1293507
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SEAM-20-02.0-S-04-1-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAM-20-02.0-S-04-1-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAM
Package	Tape & Reel
Connector Type	High Density Array, Male
Number of Positions	80
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 9.5mm
Height Above Board	0.181" (4.60mm)
Base Product Number	SEAM-20
Other Names	SAM14389TR,SAM14389CT,SAM14389DKR,SEAM-20-02.0-S-04-1-A-K-TR
Standard Package	375
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293507-SEAM-20-02.0-S-04-1-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAM-20-02.0-S-04-1-A-K-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAM 80-position male high density array connector is a versatile and reliable solution for board-to-board interconnects.

Pitch: 0.050” (1.27mm)
Rows: 4
Board Guide: Yes
Pick and Place: Yes
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Packaging: Tape and Reel
Standard Package: 375
Mounting: Surface Mount (SMD)
Height Above Board: 0.181” (4.60mm)
ECCN: EAR99
REACH: Affected
Manufacturer: Samtec Inc.
Other Names: SAM14389TR, SAM14389CT, SAM14389DKR, SEAM-20-02.0-S-04-1-A-K-TR
