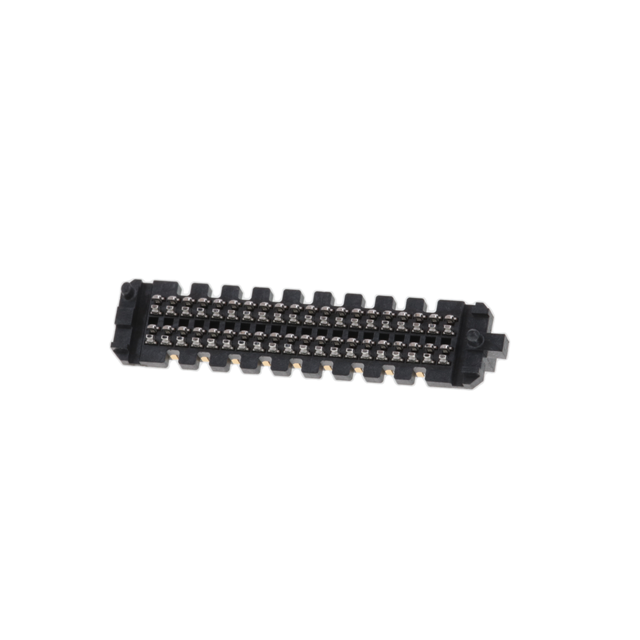

SEAM-20-02.0-S-04-2-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAM-20-02.0-S-04-2-A-K-TR

Part No SEAM-20-02.0-S-04-2-A-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAM-20-02.0-S-04-2-A-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAM
Package Tape & Reel
Connector Type High Density Array, Male
Number of Positions 80
Pitch 0.050" (1.27mm)
Number of Rows 4
Mounting SMD (SMT)
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 7mm, 8mm, 8.5mm, 9.5mm
Height Above Board 0.181" (4.60mm)
Base Product Number SEAM-20
Other Names SEAM-20-02.0-S-04-2-A-K-FR,SAM14390TR,SEAM-20-02.0-S-04-2-A-K-TR,SAM14390CT,SAM14390DKR
Standard Package 375
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293508-SEAM-20-02.0-S-04-2-A-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAM-20-02.0-S-04-2-A-K-TR CAD Model

Description

The SEARAY™ SEAM Rectangular Connector is a high-density array, male type connector that is ideal for use in various board-to-board applications.

  • Positions: 80
  • Pitch: 0.050" (1.27mm)
  • Rows: Four
  • Board Guide: Yes
  • Pick and Place: Yes
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Tape and Reel
  • Units per Package: 375
  • Mated Stacking Heights: 7mm, 8mm, 8.5mm, and 9.5mm
  • Height Above Board: 0.181" (4.60mm)
  • Mounting: Surface-Mount Device (SMD)
  • RoHS: Compliant
  • ECCN: EAR99
