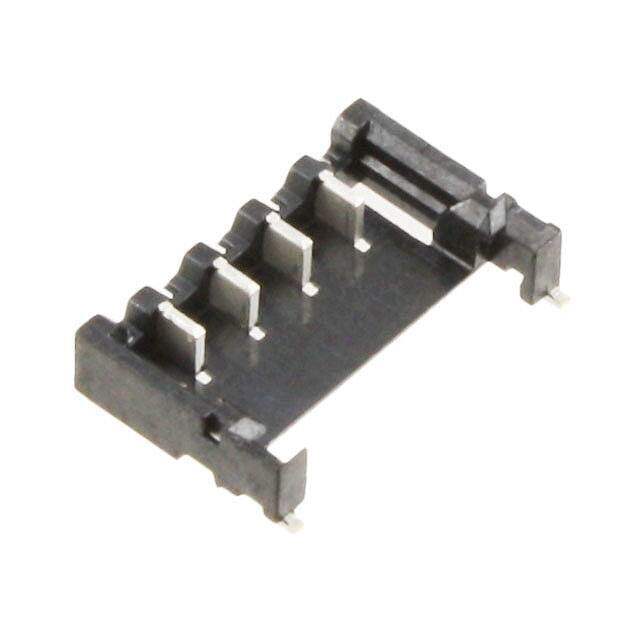

Same model may have multiple batches, images only for reference.

DF57-4P-1.2V(21)

Name: DF57-4P-1.2V(21)
Brand: Hirose Electric Co Ltd
SKU: 868594
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF57-4P-1.2V(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 4POS 1.2MM / Connector Header Surface Mount 4 position 0.047" (1.20mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF57
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Blade
Pitch - Mating	0.047" (1.20mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Swing Lock
Insulation Height	0.055" (1.40mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Standard Package	5,000 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	868594-DF57-4P-1.2V(21)
Ultra Librarian 3D Model	Ultra Librarian DF57-4P-1.2V(21) CAD Model

Alternative Products

Description

The 868594-DF57-4P-1.2V(21) is a male pin header connector from Hirose Electric Co Ltd.

Series: DF57
Positions: 4
Solder Retention: Yes
Fastening Type: Swing Lock
Mounting Type: Surface Mount
Shrouding Style: Unshrouded
Pitch for Mating: 0.047" (1.20mm)
Contact Material: Brass
Contact Finish: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Operating Temperature Range: -35°C to 85°C
Application: Board to Cable/Wire
Package Quantity: 5,000 pieces
Packaging: Tape and Reel
Product Status: Obsolete
