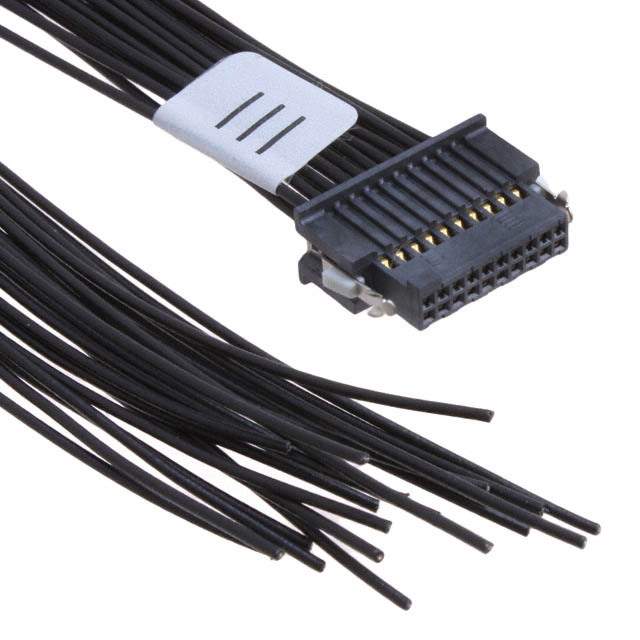

SFSD-10-28-H-05.00-SR Real Image
Same model may have multiple batches, images only for reference.

SFSD-10-28-H-05.00-SR

Part No SFSD-10-28-H-05.00-SR
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Datasheet
SFSD-10-28-H-05.00-SR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Tiger Eye™ SFSD
Package Bulk
Connector Type Socket to Individual Wire Leads
Number of Positions 20
Number of Rows 2
Pitch - Connector 0.050" (1.27mm)
Length 0.417' (127.00mm, 5.00")
Features Latch Lock, Polarizing Key
Color Black, Individual
Shielding Unshielded
Cable Termination Crimp
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number SFSD-10
Other Names SFSD1028H0500SR,SAM8663
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1312304-SFSD-10-28-H-05.00-SR
Ultra Librarian 3D Model Ultra Librarian SFSD-10-28-H-05.00-SR CAD Model

Description

The Tiger Eye™ SFSD series socket to individual wire leads connector from Samtec Inc. is a rectangular connector that is ideal for cable assemblies applications.

  • Connector Type: Socket to Individual Wire Leads
  • Pitch: 0.050 inches (1.27mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Lock Type: Latch Lock
  • Feature: Polarizing Key
  • Cable Length: 0.417 feet (127.00mm, 5.00 inches)
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Application: Cable Assemblies, Rectangular Cable Assemblies
