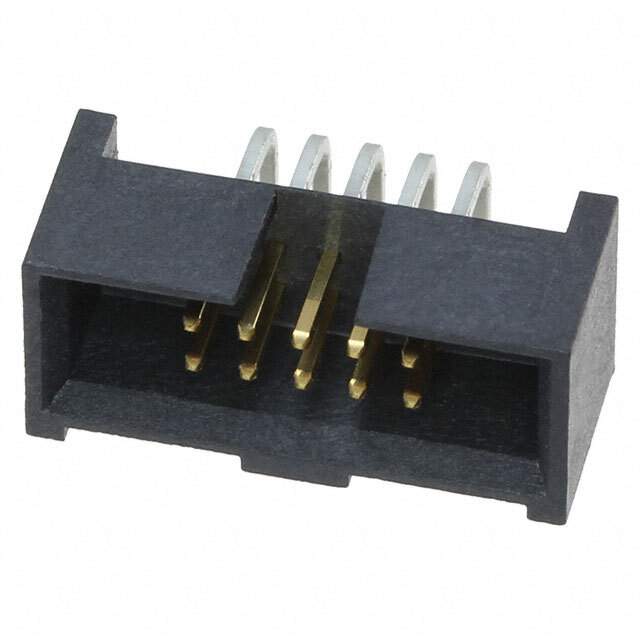

SHF-105-01-L-D-RA Real Image
Same model may have multiple batches, images only for reference.

SHF-105-01-L-D-RA

Part No SHF-105-01-L-D-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SHF-105-01-L-D-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series SHF
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.085" (2.16mm)
Insulation Height 0.220" (5.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number SHF-105
Other Names Q7165861Y,SHF-105-01-L-D-RA,SAM8970
Standard Package 45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293147-SHF-105-01-L-D-RA
Ultra Librarian 3D Model Ultra Librarian SHF-105-01-L-D-RA CAD Model

Description

The Samtec Inc. SHF-105-01-L-D-RA is a male pin header connector with a keying slot feature.

  • Feature: Keying Slot
  • Positions Loaded: 10
  • Rows: 2
  • Pitch-Mating: 0.050" (1.27mm)
  • Connector Type: Header
  • Shrouding: Shrouded-4 Wall
  • Contact Material: Phosphor Bronze
  • Contact Finish-Mating Thickness: 10.0µin (0.25µm)
  • Contact Finish-Post: Tin
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Temperature Range: -55°C ~ 125°C
  • Current Rating: 3A
  • Win Source Part Number: 1293147-SHF-105-01-L-D-RA
