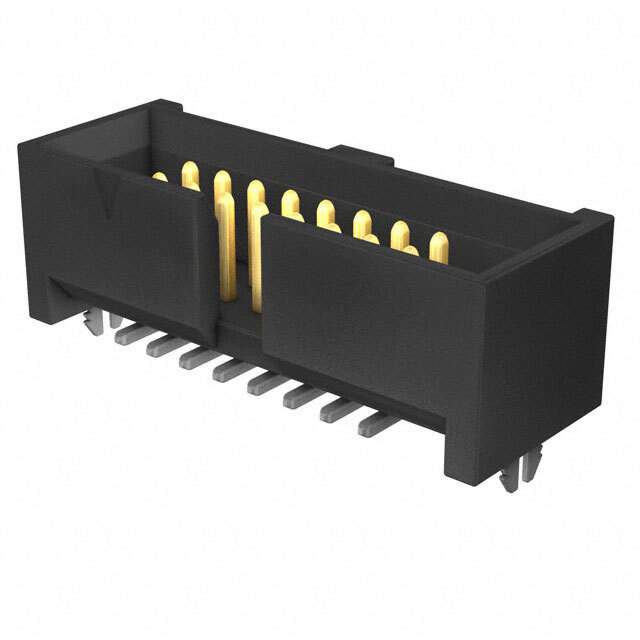

SHF-108-01-L-D-SM-LC-TR

Name: SHF-108-01-L-D-SM-LC-TR
Brand: Samtec Inc.
SKU: 1293158
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SHF-108-01-L-D-SM-LC-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SHF-108-01-L-D-SM-LC-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	SHF
Package	Tape & Reel (TR)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.210" (5.33mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Lock, Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	SHF-108
Standard Package	450
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293158-SHF-108-01-L-D-SM-LC-TR
Ultra Librarian 3D Model	Ultra Librarian SHF-108-01-L-D-SM-LC-TR CAD Model

Alternative Products

Description

The SHF header is a rectangular male pin connector that features board lock and keying slot for easy and secure connectivity.

Features: Board Lock and Keying Slot
Positions: 16
Color: Black
Contact Material: Phosphor Bronze
Termination: Solder
Pitch: 0.050" (1.27mm)
Application: Board to cable/wire
Contact Finish: Gold with a thickness of 10.0μin (0.25μm)
Temperature Range: -55°C ~ 125°C
Current Rating: 3A
Manufacturer: Samtec Inc.
Series: SHF
