Same model may have multiple batches, images only for reference.

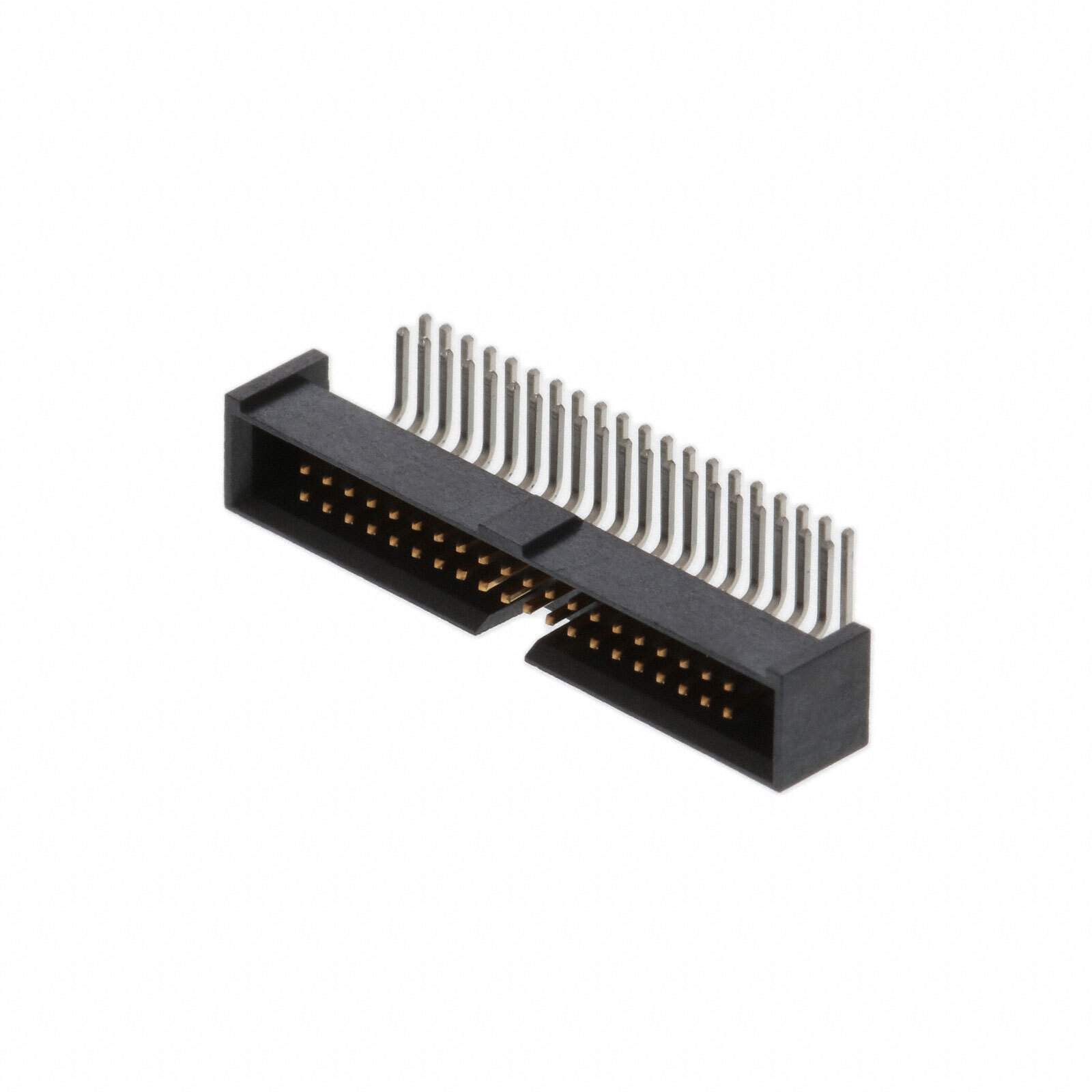

SHF-120-01-L-D-RA Real Image
Same model may have multiple batches, images only for reference.

SHF-120-01-L-D-RA

Part No SHF-120-01-L-D-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SHF-120-01-L-D-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series SHF
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.085" (2.16mm)
Insulation Height 0.220" (5.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number SHF-120
Other Names SAM15776,SHF-120-01-L-D-RA
Standard Package 18
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293123-SHF-120-01-L-D-RA
Ultra Librarian 3D Model Ultra Librarian SHF-120-01-L-D-RA CAD Model

Description

This is a rectangular connector with a header type connector.

  • Contacts: 40 male pin contacts
  • Contact Material: Phosphor bronze
  • Contact Plating: Gold plated
  • Contact Finish Thickness (Mating): 10.0µin (0.25µm)
  • Contact Finish Thickness (Post): Not specified
  • Insulation Material: Black liquid crystal polymer (LCP)
  • Insulation Height: 0.220 inches (5.60mm)
  • Pitch: 0.050 inches (1.27mm)
  • Contact Shape: Square
  • Mounting: Through-hole and right angle
  • Fastening Type: Push-pull
  • Operating Temperature: -55°C to 125°C
  • Shrouded: Shrouded with 4 walls
  • Feature: Keying slot
