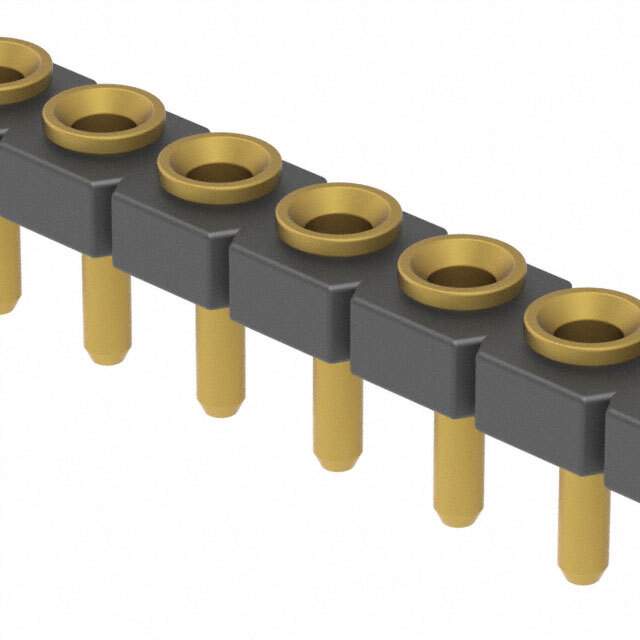

The SL-106-G-19 is a terminal strip manufactured by Samtec Inc., designed to provide a reliable and efficient board-to-board connection solution. Part of the SL series, this component is well-suited for various electronic applications where secure and consistent connectivity is essential.

Applications

• Consumer Electronics: Used in the internal connections of devices like televisions, audio equipment, and home appliances.
• Automotive Electronics: Employed in automotive control units, sensor connections, and in-car entertainment systems.
• Data Acquisition Systems: Found in data loggers, sensor interfaces, and measurement devices for signal routing.
• Lighting Systems: Utilized in LED lighting control systems and other lighting applications.
• Robotics: Incorporated into robot controllers, sensor interfaces, and power distribution systems.

Features

• Number of Rows: Single row configuration for space-saving design.
• Number of Positions: 6 positions, providing multiple connection points in a compact form factor.
• Pitch: Standard 0.100" (2.54mm) pitch, ensuring compatibility with a wide range of PCBs and components.
• Termination Style: Through-hole termination for secure and stable mounting on printed circuit boards.
• Insulator Material: High-quality thermoplastic insulator, offering excellent electrical insulation and temperature resistance.
• Contact Material: Phosphor bronze or beryllium copper contacts for optimal conductivity and durability.
• Contact Plating: Gold or tin plating on the contact area to ensure reliable electrical contact and prevent corrosion.
• Operating Temperature: Wide operating temperature range to suit various environmental conditions.

Benefits

• Secure Connection: Provides a robust and reliable electrical connection, minimizing signal loss and ensuring consistent performance.
• Durable and Long-Lasting: Constructed with high-quality materials to ensure long-term reliability and resistance to environmental factors.
• Easy to Install: Through-hole termination simplifies the soldering process, making it easy to integrate into new or existing designs.
• Versatile Application: Suitable for a broad range of applications due to its compact size, reliable performance, and durable construction.
• Cost-Effective: Offers a good balance of performance and cost, making it a practical choice for various projects.

Additional Details

The SL-106-G-19 terminal strip is engineered for ease of use and dependable performance. Its through-hole termination method provides a secure mechanical connection to the PCB, while the high-temperature thermoplastic insulator allows for reflow soldering without damage. The gold or tin plating on the contacts ensures consistent electrical performance, even in demanding environments. This component is an excellent choice for applications that require a reliable and space-saving board-to-board connection.
