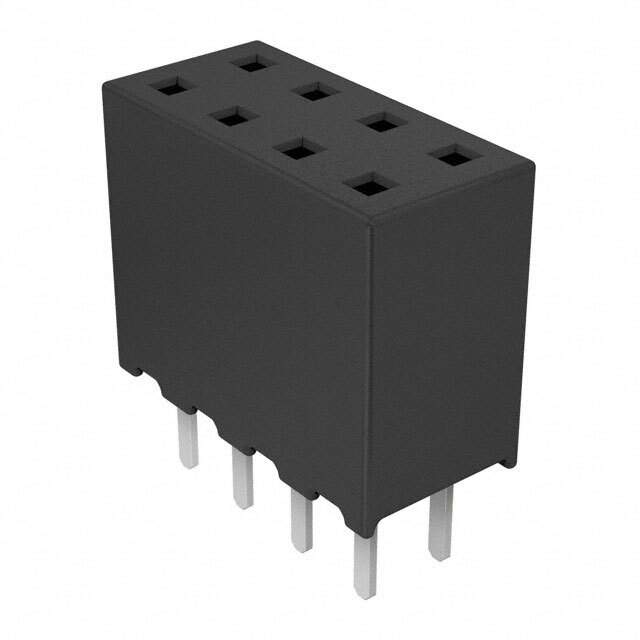

SQW-104-01-F-D Real Image
Same model may have multiple batches, images only for reference.

SQW-104-01-F-D

Part No SQW-104-01-F-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SQW-104-01-F-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SQW
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insulation Color Black
Insulation Height 0.250" (6.35mm)
Contact Length - Post 0.090" (2.29mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.8A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SQW-104
Other Names SAM11875,SQW-104-01-F-D
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292302-SQW-104-01-F-D
Ultra Librarian 3D Model Ultra Librarian SQW-104-01-F-D CAD Model

Description

The Samtec Inc. electronic component (product) with Win Source Part Number 1292302-SQW-104-01-F-D is a SQW series product that falls under the category of Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets.

  • Style: Board to board or cable
  • Pitch - Mating: 0.079" (2.00mm)
  • Number of Positions: 8
  • Contact Type: Forked
  • Termination: Solder
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 3.00µin (0.076µm)
  • Contact Finish - Post: Tin
  • Insulation Color: Black
  • Mounting Type: Through Hole
  • Row Spacing - Mating: 0.079" (2.00mm)
  • Operating Temperature Range: -55°C ~ 125°C
  • ECCN: EAR99
  • Current Rating: 3.8A per contact
  • HTSUS: 8536.69.4040
