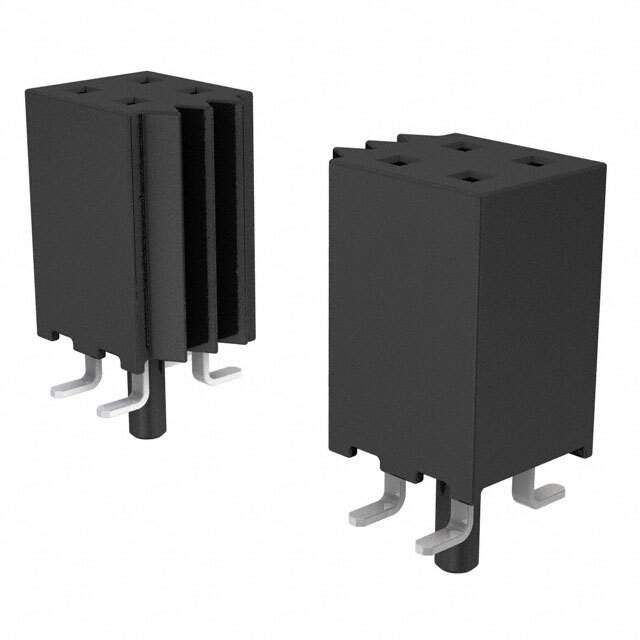

SQW-110-01-L-D-VS-A Real Image
Same model may have multiple batches, images only for reference.

SQW-110-01-L-D-VS-A

Part No SQW-110-01-L-D-VS-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SQW-110-01-L-D-VS-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SQW
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.300" (7.62mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Guide
Current Rating (Amps) 3.8A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SQW-110
Other Names SQW-110-01-L-D-VS-A,SAM8862
Standard Package 27
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292284-SQW-110-01-L-D-VS-A
Ultra Librarian 3D Model Ultra Librarian SQW-110-01-L-D-VS-A CAD Model

Description

The SQW series connector from Samtec Inc. is a receptacle connector that features 20 positions loaded with forked contacts.

  • Connector Type: Receptacle
  • Positions: 20
  • Contact Type: Forked
  • Termination: Solder
  • Current: 3.8A per contact
  • Contact Material: Phosphor bronze
  • Insulation Material: Liquid crystal polymer (LCP), with a black color
  • Pitch: 0.079" (2.00mm)
  • Mounting: Surface mounted
  • Contact Finish: Gold
  • Insulation Height: 0.300" (7.62mm)
  • Temperature Range: -55°C to 125°C
  • Material Flammability Rating: UL94 V-0
  • Package: Trays
