Same model may have multiple batches, images only for reference.

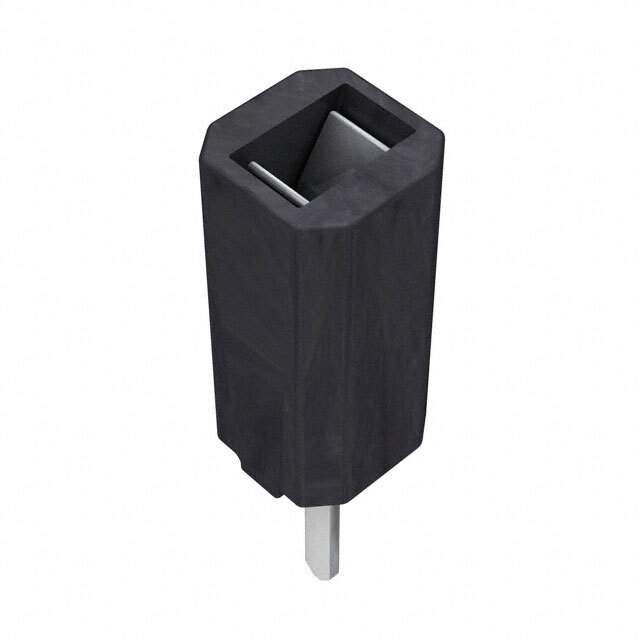

SSA-101-S-T Real Image
Same model may have multiple batches, images only for reference.

SSA-101-S-T

Part No SSA-101-S-T
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSA-101-S-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSA
Package Bulk
Connector Type Receptacle, Breakaway
Contact Type Female Socket
Style Board to Board
Number of Positions 1
Number of Positions Loaded All
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.230" (5.85mm)
Contact Length - Post 0.151" (3.84mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Voltage Rating 1000V
Insulation Material Polyethylene Terephthalate (PET), Polyester
Contact Material Phosphor Bronze
Base Product Number SSA-101
Other Names SAM1122-01
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292024-SSA-101-S-T
Ultra Librarian 3D Model Ultra Librarian SSA-101-S-T CAD Model

Description

The Samtec Inc. SSA-101-S-T is a SSA series receptacle connector with 1 position and a pitch of 0.050" (1.27mm).

  • Series: SSA
  • Position: 1
  • Pitch: 0.050" (1.27mm)
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Application: Board-to-Board
  • Fastening Type: Push-Pull
  • Package: Bulk
  • Standard Package: 1
  • Contact Finish (Mating): Tin
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 1000V
  • Temperature Range: -55°C ~ 105°C
  • RoHS Compliant: Yes
