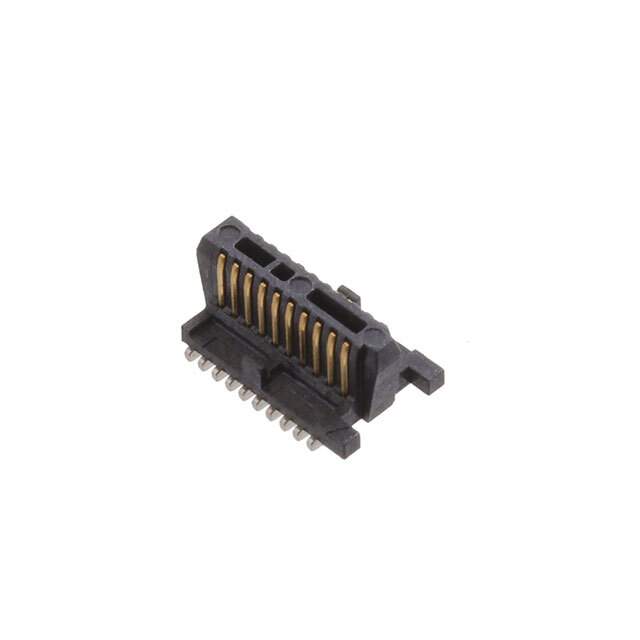

ST5-10-1.00-L-D-P-TR

Name: ST5-10-1.00-L-D-P-TR
Brand: Samtec Inc.
SKU: 1293952
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ST5-10-1.00-L-D-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	ST5-10-1.00-L-D-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Razor Beam™ ST5
Package	Tape & Reel
Connector Type	Header, Center Strip Contacts
Number of Positions	20
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	4mm, 4.5mm
Height Above Board	0.121" (3.07mm)
Base Product Number	ST5-10
Other Names	SAM14639TR,ST5-10-1.00-L-D-P-TR,SAM14639CT,ST5-10-1.00-L-D-P-FR,SAM14639DKR
Standard Package	1,200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293952-ST5-10-1.00-L-D-P-TR
Ultra Librarian 3D Model	Ultra Librarian ST5-10-1.00-L-D-P-TR CAD Model

Alternative Products

Description

The Razor Beam™ ST5 is a header connector with center strip contacts, manufactured by Samtec Inc.

Pitch: 0.020 inches (0.50mm)
Positions: 20
Rows: 2
Assembly: Pick and Place
Packaging: Tape and Reel
Contact Finish: Gold
Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 4mm and 4.5mm
Height Above Board: 0.121 inches (3.07mm)
Mounting: SMD (SMT)
ECCN: EAR99
HTSUS Code: 8536.69.4040
