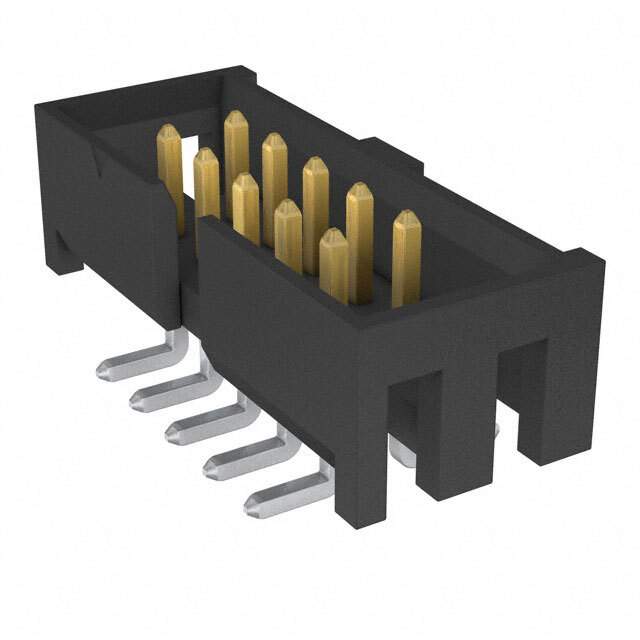

STMM-105-02-F-D-SM-K-TR Real Image
Same model may have multiple batches, images only for reference.

STMM-105-02-F-D-SM-K-TR

Part No STMM-105-02-F-D-SM-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
STMM-105-02-F-D-SM-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, STMM
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.190" (4.83mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot, Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number STMM-105
Other Names STMM-105-02-F-D-SM-K-TR,SAM14646TR,SAM14646CT,SAM14646DKR
Standard Package 475
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293210-STMM-105-02-F-D-SM-K-TR
Ultra Librarian 3D Model Ultra Librarian STMM-105-02-F-D-SM-K-TR CAD Model

Description

The Samtec Inc. 1293210-STMM-105-02-F-D-SM-K-TR is a connector that belongs to the Flex Stack, STMM series.

  • Series: Flex Stack, STMM
  • Connector Type: Rectangular connector
  • Contact Type: Male Pins
  • Positions: 10
  • Termination: Solder
  • Fastening Type: Push-pull
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Pitch - Mating: 0.079" (2.00mm)
  • Contact Finish - Mating: Gold, 3.00 microns (0.076 microns)
  • Contact Finish - Post: Tin
  • Mounting: SMD (SMT)
  • Shrouding: Shrouded - 4 Wall
