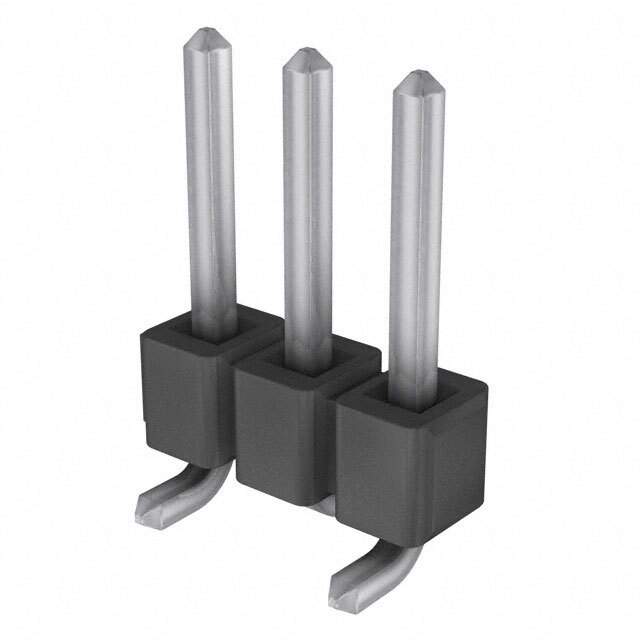

TSM-103-01-T-SV-P-TR Real Image
Same model may have multiple batches, images only for reference.

TSM-103-01-T-SV-P-TR

Part No TSM-103-01-T-SV-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 3POS 2.54MM / Connector Header Surface Mount 3 position 0.100" (2.54mm)
Datasheet
TSM-103-01-T-SV-P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Samtec Inc.
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number TSM-103
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number TSM-103-01-T-SV-P-TR-ND,SAM13285CT,SAM13285DKR,SAM13285TR-ND,TSM-103-01-T-SV-P-FR,612-TSM-103-01-T-SV-P-TRDKR,SAM13285TR,612-TSM-103-01-T-SV-P-TR,SAM13285CT-ND,Q7970230,612-TSM-103-01-T-SV-P-TRCT,SAM13285DKR-ND,TSM-103-01-T-SV-P-TR-NDL
Standard Package 325
Win Source Part Number 1332515-TSM-103-01-T-SV-P-TR
Ultra Librarian 3D Model Ultra Librarian TSM-103-01-T-SV-P-TR CAD Model

Description

The Samtec Inc. 1332515-TSM-103-01-T-SV-P-TR is a male pin header connector that features a pick-and-place option.

  • Rows: single-row
  • Positions: 3
  • Termination: solder
  • Fastening Type: push-pull
  • Contact Material: phosphor bronze
  • Voltage Rating: not specified
  • Mounting: surface mount
  • Applications: board-to-board or cable
  • Pitch: 0.100" (2.54mm)
  • Insulation Material: liquid crystal polymer (LCP)
  • Contact Finish: tin
  • Insulation Color: black
  • Shrouding: unshrouded
  • Temperature Range: -55°C to 105°C
  • Contact Length (Mating): 0.230" (5.84mm)
  • Contact Shape: square
  • RoHS3: compliant
  • Standard Package: 325
