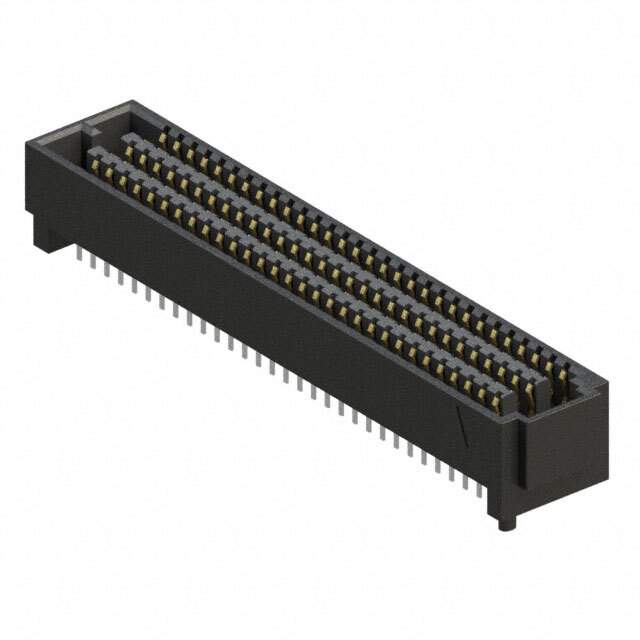

SEAF-30-05.0-S-06-2-A-K-TR

Name: SEAF-30-05.0-S-06-2-A-K-TR
Brand: Samtec Inc.
SKU: 1092270
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-30-05.0-S-06-2-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HD ARRAY RCPT 180P SMD GOLD / 180 Position Connector High Density Array, Female Surface Mount Gold
Datasheet	SEAF-30-05.0-S-06-2-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR),Cut Tape (CT)
Connector Type	High Density Array, Female
Number of Positions	180
Pitch	0.050" (1.27mm)
Number of Rows	6
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-30
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SEAF-30-05.0-S-06-2-A-K-TR-ND,SAM14335DKR,SAM14335DKRINACTIVE,SAM14335CT,SAM14335DKR-ND,SEAF-30-05.0-S-06-2-A-K-FR,SAM14335TR
Standard Package	375
Win Source Part Number	1092270-SEAF-30-05.0-S-06-2-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-30-05.0-S-06-2-A-K-TR CAD Model
