SEAF-30-05.0-S-04-2-A-K-TR Samtec Inc. – Price, Stock & Datasheet

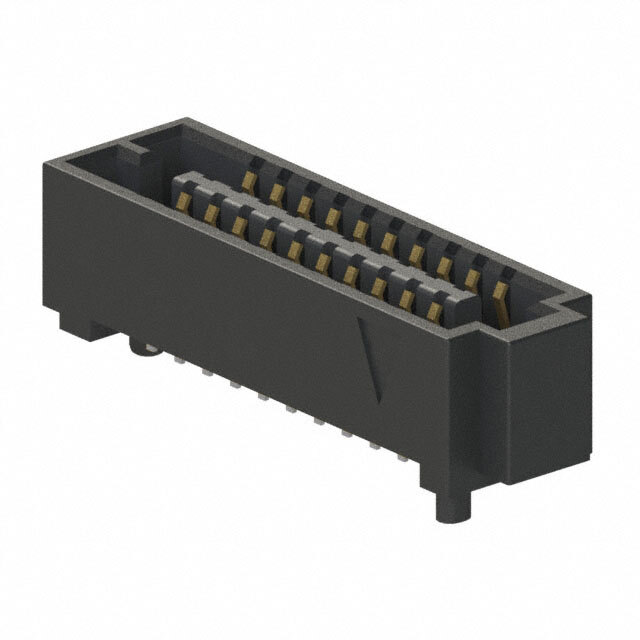

Same model may have multiple batches, images only for reference.

SEAF-30-05.0-S-04-2-A-K-TR

Part No SEAF-30-05.0-S-04-2-A-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Description CONN HD ARRAY RCPT 120P SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type High Density Array, Female
Number of Positions 120
Pitch 0.050" (1.27mm)
Number of Rows 4
Mounting Type Surface Mount
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board 0.199\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1509429-SEAF-30-05.0-S-04-2-A-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-30-05.0-S-04-2-A-K-TR CAD Model

Description

N
