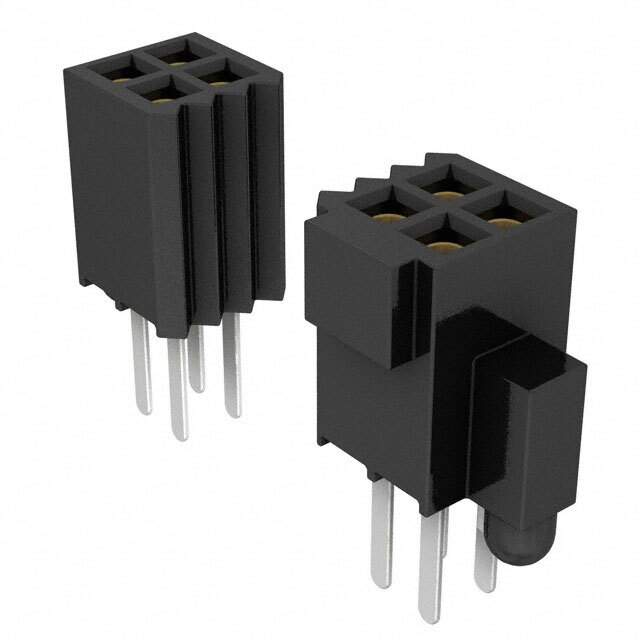

Same model may have multiple batches, images only for reference.

SFC-110-T1-F-D-A

Name: SFC-110-T1-F-D-A
Brand: Samtec Inc.
SKU: 1287812
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFC-110-T1-F-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFC-110-T1-F-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFC
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Board Guide
Current Rating (Amps)	3.1A per Contact
Voltage Rating	350VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SFC-110
Other Names	SAM12821,Q3957998A,SFC-110-T1-F-D-A
Standard Package	35
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287812-SFC-110-T1-F-D-A
Ultra Librarian 3D Model	Ultra Librarian SFC-110-T1-F-D-A CAD Model

Alternative Products

Description

The SFC-110-T1-F-D-A is a receptacle connector that belongs to the Tiger Eye™ SFC series of rectangular connectors.

Positions: 20
Mounting: Through-Hole
Contact Type: Female Socket
Contact Material: Phosphor Bronze
Pitch: 0.050" (1.27mm)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness: 3.00μin (0.076μm)
Contact Finish - Post: Tin
Temperature Range: -55°C to 125°C
Current Rating: 3.1A per contact
Manufacturer: Samtec Inc.
