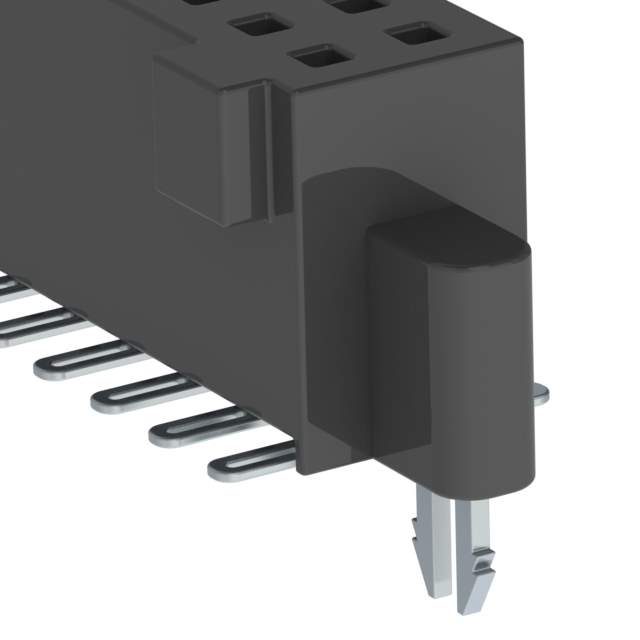

The Tiger Eye™ SFM series from Samtec Inc. offers a 40 position receptacle connector with board lock and pick and place features.

• Positions: 40 position
• Features: board lock and pick and place features
• Connector Type: female socket
• Positions Loaded: all positions loaded
• Rows: two rows
• Termination: solder
• Fastening Type: push-pull
• Package: tape and reel package
• Contact Material: beryllium copper
• Voltage Rating: 250VAC
• Mated Stacking Heights: range from 6.15mm to 11.76mm
• Insulation Material: liquid crystal polymer (LCP)
• Insulation Color: black
• Connection Style: board to board or cable style connections
• Pitch Mating: 0.050” (1.27mm)
• Contact Finish Mating: gold with a thickness of 3.00μin (0.076μm)
• Post Finish: tin
• Flammability Rating: UL94 V-0
• Temperature Range: -55°C to 125°C
