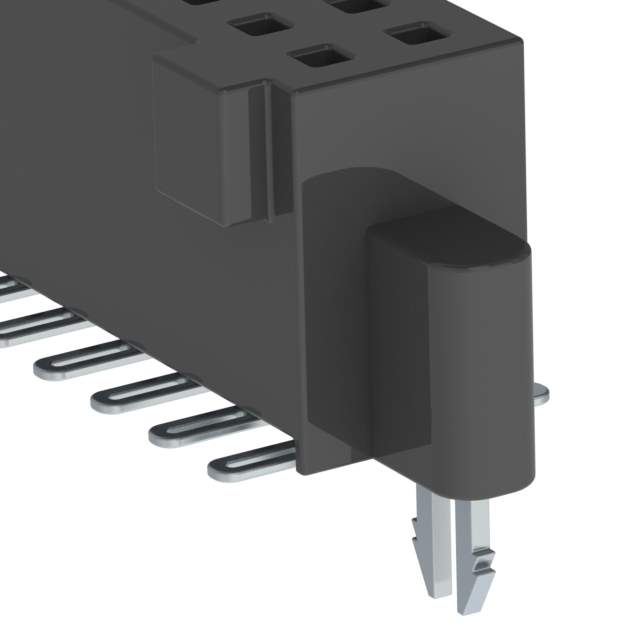

The 1287402-SFM-135-02-S-D-LC-P-TR is a receptacle connector header from the Tiger Eye™ SFM series.

• Positions: 70 positions and two rows.
• Connector Type: receptacle.
• Number of Positions Loaded: all.
• Termination: solder.
• Package: tape & reel (TR).
• Contact Material: beryllium copper.
• Insulation Material: liquid crystal polymer (LCP).
• Pitch - Mating: 0.050" (1.27mm).
• Contact Finish - Mating: gold.
• Contact Finish Thickness - Mating: 30.0µin (0.76µm).
• Contact Finish - Post: tin.
• Insulation Color: black.
• Mounting Type: SMD (SMT).
• Row Spacing - Mating: 0.050" (1.27mm).
• Insulation Height: 0.185" (4.70mm).
• Contact Shape: square.
• Temperature Range - Operating: -55°C ~ 125°C.
• MSL Level: 1 (unlimited).
• Current Rating (Amps): 3.2A per contact.
• HTSUS: 8536.69.4040.
• Manufacturer: Samtec Inc.
• Base Product Number: SFM-135.
