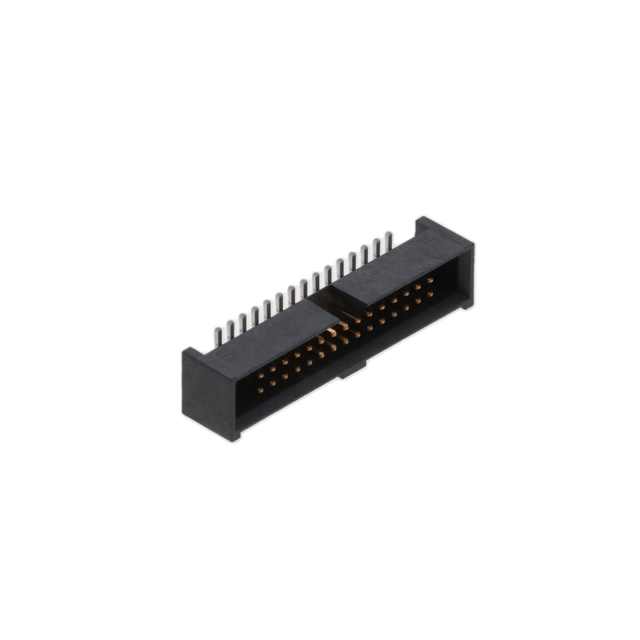

Same model may have multiple batches, images only for reference.

SHF-115-01-L-D-SM-K-TR

Name: SHF-115-01-L-D-SM-K-TR
Brand: Samtec Inc.
SKU: 933380
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SHF-115-01-L-D-SM-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 30POS 1.27MM
Datasheet	SHF-115-01-L-D-SM-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	8 Weeks
Features	Connector Header Surface Mount 30 position 0.050" (1.27mm)
Manufacturer	Samtec Inc.
Series	SHF
Package	Reel - TR
Operating Temperature Range	-55°C ~ 125°C
Mounting	Surface Mount
Family Name	SHF-115
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SAM14538CT, SAM14538DKR, SAM14538TR, SHF-115-01-L-D-SM-K-TR-ND
Quantity per package	450
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	933380-SHF-115-01-L-D-SM-K-TR
Ultra Librarian 3D Model	Ultra Librarian SHF-115-01-L-D-SM-K-TR CAD Model

Alternative Products

Description

This is a surface mount connector header with 30 positions and a pitch-mating of 0.050 inches.

Positions: 30
Pitch-mating: 0.050 inches
Series: SHF
Operating Temperature: -55°C to 125°C
Package: Reel - TR
Mounting Type: Surface mount
REACH: Unaffected
