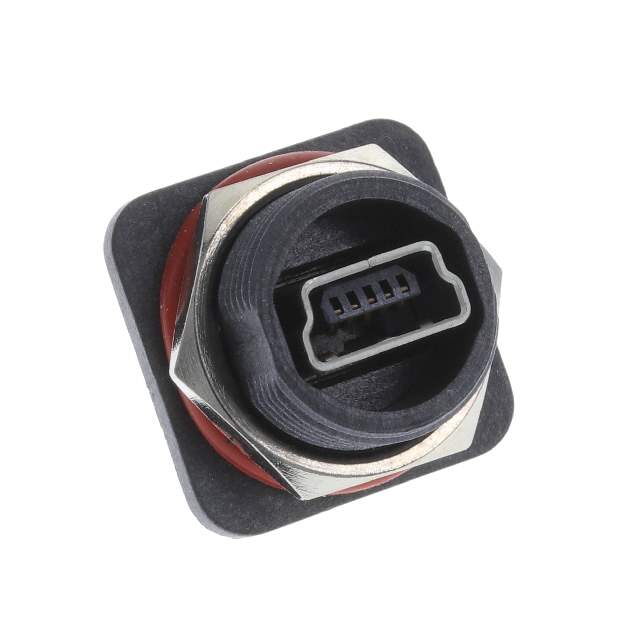

SPM-05-S-B-VT2-PF Real Image
Same model may have multiple batches, images only for reference.

SPM-05-S-B-VT2-PF

Part No SPM-05-S-B-VT2-PF
Manufacturer Samtec Inc.
Catalog USB, DVI, HDMI Connectors
Datasheet
SPM-05-S-B-VT2-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Samtec Inc.
Series SPM
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Termination Solder
Features Circular Threaded Coupling
Ingress Protection IP68 - Dust Tight, Waterproof
Temperature Range - Operating -55°C ~ 125°C
Number of Ports 1
Current Rating (Amps) 1.9A per Contact
Voltage - Rated 190V
Mating Cycles 1000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Phosphor Bronze
Insulation Color Black
Base Product Number SPM-05
Other Names SPM-05-S-B-VT2-PF,SAM11853
Standard Package 36
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1285027-SPM-05-S-B-VT2-PF
Ultra Librarian 3D Model Ultra Librarian SPM-05-S-B-VT2-PF CAD Model

Description

The SPM-05-S-B-VT2-PF from Samtec Inc. is a USB mini B receptacle connector that features a circular threaded coupling.

  • Termination: Solder
  • Contact Finish: Gold
  • Contacts: 5
  • Shielded: Yes
  • Ingress Protection: IP68
  • Shell/Shielding Material: Phosphor Bronze
  • Voltage Rating: 190V
  • Mounting Feature: Bulkhead Front Side Nut
  • Temperature Range: -55°C to 125°C
  • Mounting Type: Panel Mount and Through-Hole
  • Current Rating: 1.9A per contact
