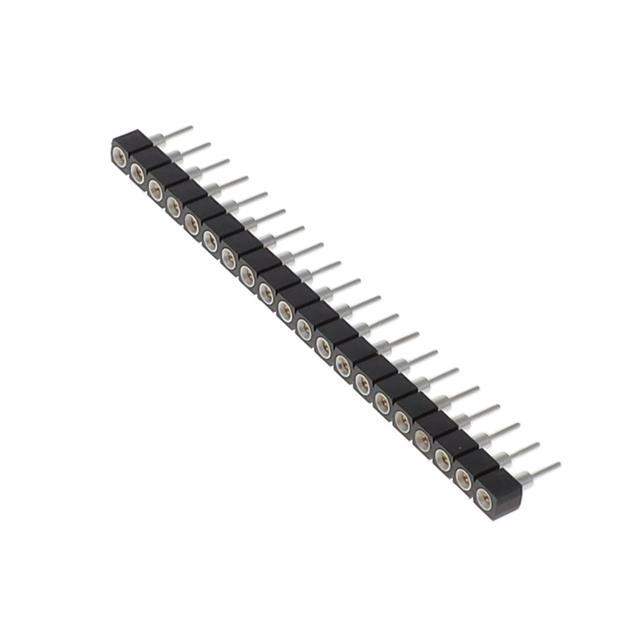

Same model may have multiple batches, images only for reference.

SS-120-T-22

Name: SS-120-T-22
Brand: Samtec Inc.
SKU: 987289
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SS-120-T-22
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	SOCKET STRIPS / 20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SS
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.100" (2.54mm)
Contact Length - Post	0.125" (3.18mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SS-120
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	11
Win Source Part Number	987289-SS-120-T-22
Ultra Librarian 3D Model	Ultra Librarian SS-120-T-22 CAD Model

Alternative Products

Description

The Samtec Inc. electronic component, with the Win Source part number 987289-SS-120-T-22, is a high-quality rectangular connector that is designed for use in electronic devices.

Series: SS
Number of Positions: 20
Connector Type: Receptacle
Contact Type: Female Socket
Loaded Positions: All
Number of Rows: 1
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Beryllium Copper
Contact Finish: Gold
Voltage Rating: Not Specified
