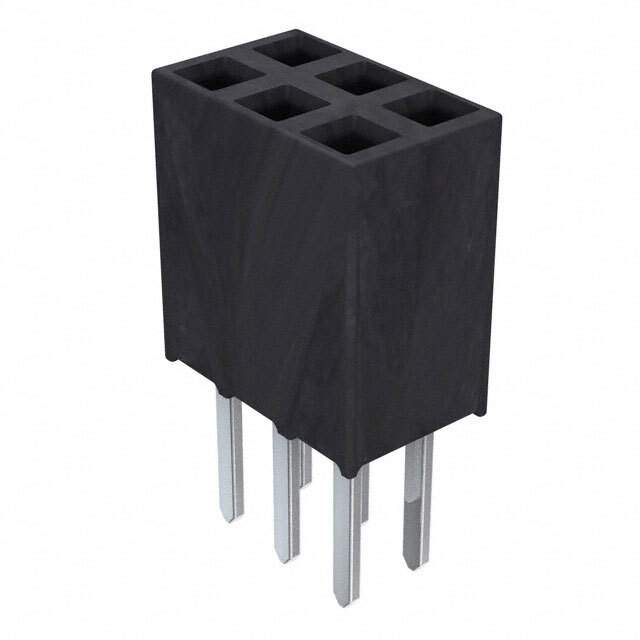

Same model may have multiple batches, images only for reference.

SSW-103-02-T-D

Name: SSW-103-02-T-D
Brand: Samtec Inc.
SKU: 1288415
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SSW-103-02-T-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.194" (4.93mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-103
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288415-SSW-103-02-T-D
Ultra Librarian 3D Model	Ultra Librarian SSW-103-02-T-D CAD Model

Alternative Products

Description

The Samtec Inc. SSW Series is a board-to-board or cable connector that features a receptacle connector type with forked contact.

Connector Type: Receptacle
Contact Type: Forked
Positions: 6
Positions Loaded: All
Rows: 2
Pitch: 0.100 inches (2.54 mm)
Contact Material: Phosphor Bronze
Contact Plating: Tin for both mating and post
Contact Length (Post): 0.194 inches (4.93 mm)
Insulation Material: Liquid crystal polymer (LCP)
Insulation Color: Black
Mounting Type: Through-hole
Fastening Type: Push-Pull
Voltage Rating: Not specified
Current Rating: 4.7A per contact
Temperature Range: -55°C to 105°C
Material Flammability Rating: UL94 V-0
Standard Package: 1
Packaging: Bulk
