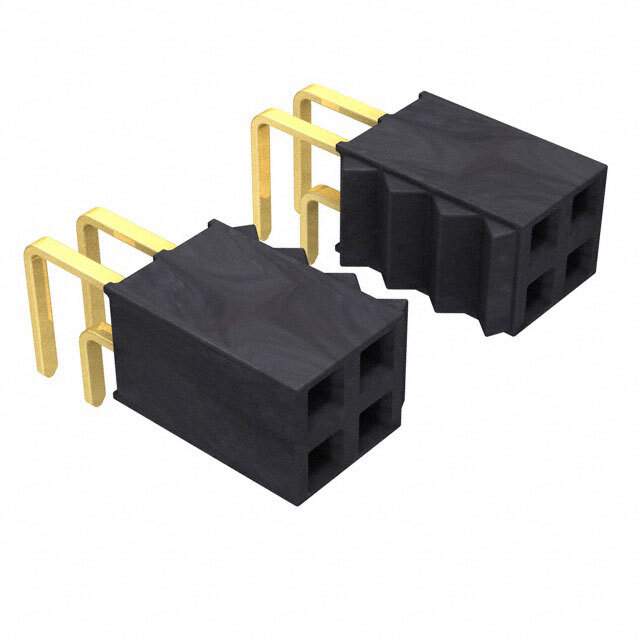

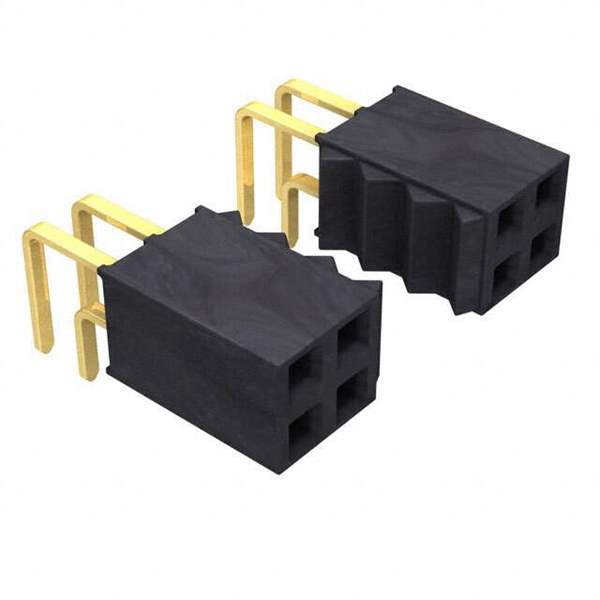

SSW-130-02-G-D-RA Real Image
Same model may have multiple batches, images only for reference.

SSW-130-02-G-D-RA

Part No SSW-130-02-G-D-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSW-130-02-G-D-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSW
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 60
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.195" (4.95mm)
Contact Length - Post 0.100" (2.54mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Current Rating (Amps) 4.7A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SSW-130
Other Names SAM1215-30
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1288770-SSW-130-02-G-D-RA
Ultra Librarian 3D Model Ultra Librarian SSW-130-02-G-D-RA CAD Model

Description

The SSW series is a high-density, dual-row connector system that is designed for board-to-board or cable-to-board applications.

  • Connector Type: Receptacle
  • Pitch: 0.1 inches (2.54 mm)
  • Contacts: 60 forked contacts made of phosphor bronze with gold plating
  • Contact Length: 0.1 inches (2.54 mm)
  • Contact Finish Thickness: 3.00µin (0.076µm)
  • Operating Temperature Range: -55°C to 125°C
  • Fastening Type: Push-pull
  • Mounting: Through hole with a right-angle orientation
  • Packaging: Bulk
  • Insulation Height: 0.195 inches (4.95 mm)
  • Insulation Material: Liquid crystal polymer (LCP)
  • Flammability Rating: UL94 V-0
  • REACH: Unaffected
  • Current Rating: 4.7A per contact
  • ECCN: EAR99
