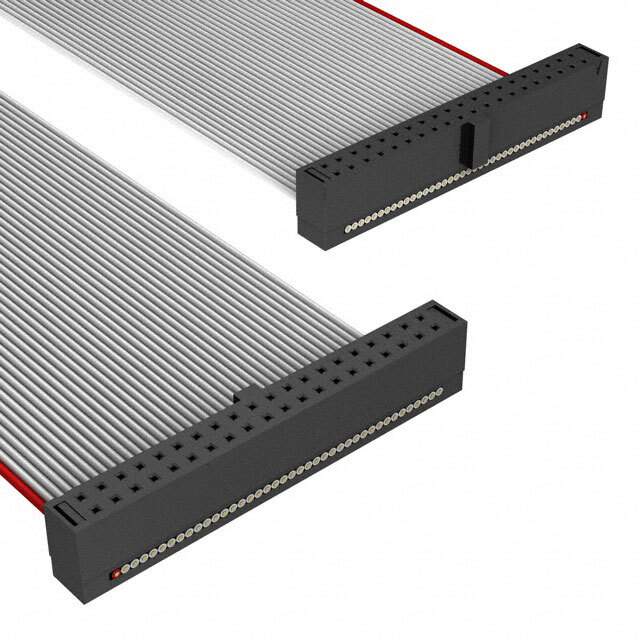

TCSD-20-D-02.00-01-N Real Image
Same model may have multiple batches, images only for reference.

TCSD-20-D-02.00-01-N

Part No TCSD-20-D-02.00-01-N
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Description CABLE ASSEM 2MM 40POS F-F 2" / 40 Position Cable Assembly Rectangular Socket to Socket 0.167' (50.80mm, 2.00")
Datasheet
TCSD-20-D-02.00-01-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Tiger Eye™ TCSD
Package Bulk
Connector Type Socket to Socket
Number of Positions 40
Number of Rows 2
Pitch - Connector 0.079" (2.00mm)
Pitch - Cable 0.039" (1.00mm)
Length 0.167' (50.80mm, 2.00")
Features Polarizing Key
Color Gray, Ribbon
Shielding Unshielded
Cable Termination IDC
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number TCSD-20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Other Names TCSD20D020001N,SAM8542
Standard Package 1
Win Source Part Number 1194706-TCSD-20-D-02.00-01-N
Ultra Librarian 3D Model Ultra Librarian TCSD-20-D-02.00-01-N CAD Model

Description

The Tiger Eye™ TCSD is a cable assembly of Samtec Inc.

  • Win Source Part Number: 1194706-TCSD-20-D-02.00-01-N
  • Length: 0.167' (50.80mm, 2.00")
  • Pitch: 0.079" (2.00mm)
  • Pitch - Cable: 0.039" (1.00mm)
  • Shielding: Unshielded
  • Cable Termination: IDC
  • Standard Package: 1
  • Connector Type: Socket to Socket
  • Polarizing Key: Yes
  • Number of Positions: 40
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
