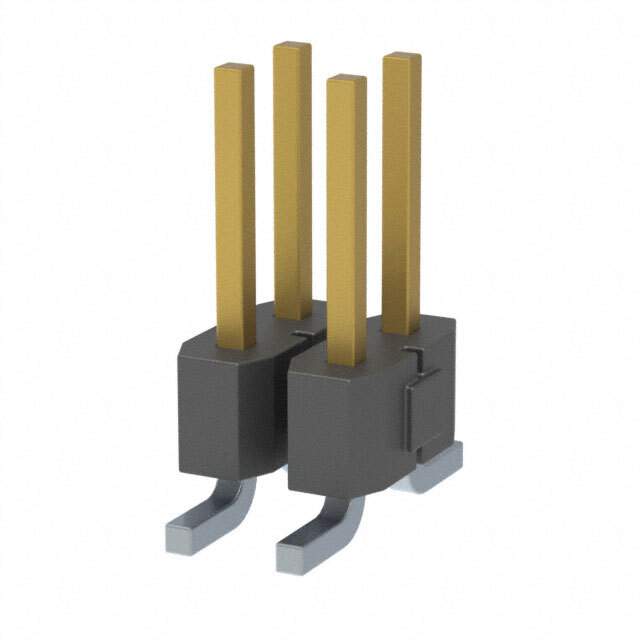

TSM-102-01-L-DV-TR Real Image
Same model may have multiple batches, images only for reference.

TSM-102-01-L-DV-TR

Part No TSM-102-01-L-DV-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 4POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Samtec Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Style SMD
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0μin (0.25μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Manufacturer Pack Quantity 225
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803843-TSM-102-01-L-DV-TR
Ultra Librarian 3D Model Ultra Librarian TSM-102-01-L-DV-TR CAD Model

Description

The 803843-TSM-102-01-L-DV-TR is a 4-position male pin header connector manufactured by Samtec Inc.

  • Application: Board-to-Board, Cable
  • Mounting Type: Surface Mount
  • Insulation Material: Liquid Crystal Polymer
  • Contact Material: Phosphor Bronze
  • Temperature Range: -55°C to 125°C
  • Voltage Rating: N/A
  • Shrouding: Unshrouded
  • Contact Shape: Square
  • Contact Finish (Mating): Gold, 10.0μin (0.25μm)
  • Contact Finish (Post): Tin
  • Contact Length: 0.230" (5.84mm)
  • Insulation Height: 0.100" (2.54mm)
  • Packaging: Reel
  • Manufacturer Pack Quantity: 225

The 803843-TSM-102-01-L-DV-TR connector is a reliable choice for your electronic component needs.
