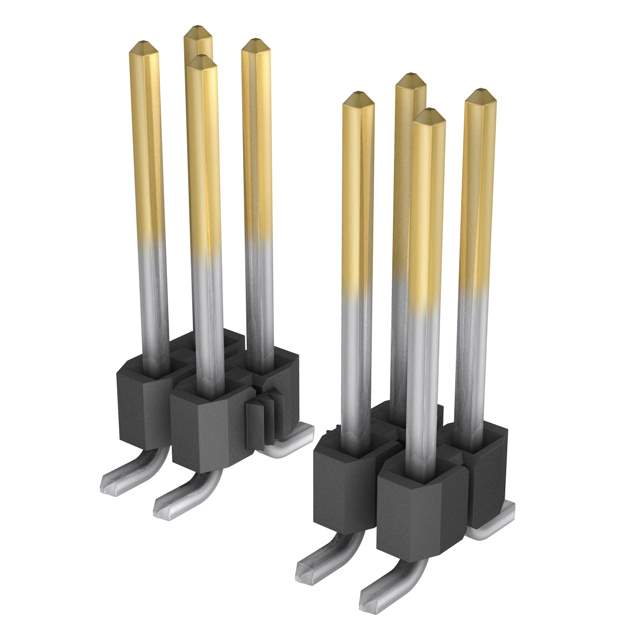

The TSM series header connector is a male pin type connector with a pitch of 0.100" (2.54mm) and is used for board to board or cable connections.

• Positions Loaded: 22
• Number of Rows: Two
• Fastening Type: Push-pull
• Termination: Soldering
• Contact Material: Phosphor bronze
• Mating Contact Finish: Gold
• Mating Contact Finish Thickness: 30.0µin (0.76µm)
• Post Contact Finish: Tin
• Insulation Material: Liquid crystal polymer (LCP)
• Flammability Rating: UL94 V-0
• Operating Temperature: -55°C ~ 125°C
• Packaging: Tube
• Standard Package: 1
• Color: Black
• Shrouding: Unshrouded
• Alternative to: 0015911222, 15-91-0160, 71349-2042, HTSS-112-01-L-DV, TSM-109-02-S-DV, and TSM-109-03-S-DV.
