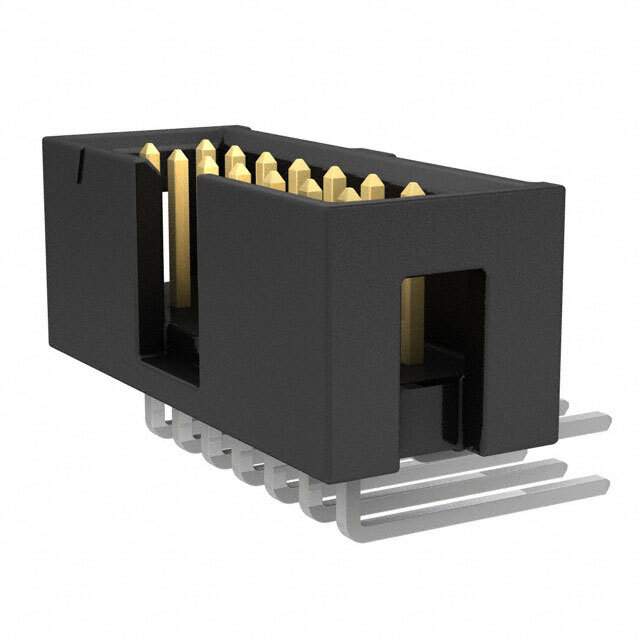

Same model may have multiple batches, images only for reference.

TST-107-04-S-D-RA

Name: TST-107-04-S-D-RA
Brand: Samtec Inc.
SKU: 531920
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TST-107-04-S-D-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER 14POS .100" R/A GOLD
Datasheet	TST-107-04-S-D-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Tube/Rail
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.365" (9.27mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	3.4A per Contact
Win Source Part Number	1114793-TST-107-04-S-D-RA
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian TST-107-04-S-D-RA CAD Model

Alternative Products

Description

The Samtec Inc. 1114793-TST-107-04-S-D-RA is a male pin header connector used in electronic devices.

Connector Type: Header, Male Pins
Positions: 14
Keying Slot: Yes
Loaded Positions: All
Material: Polybutylene Terephthalate (PBT), Glass Filled
Contact Finish (Mating): Gold
Pitch (Mating): 2.54mm
Shrouding: 4 Walls
Row Spacing (Mating): 0.100" (2.54mm)
Contact Length (Mating): 0.250" (6.35mm)
Contact Length (Post): 0.130" (3.30mm)
Current Rating: 3.4A per contact
Flammability Rating: UL94 V-0
Temperature Range: -55°C to 125°C
Supply and Demand Status: Balanced
