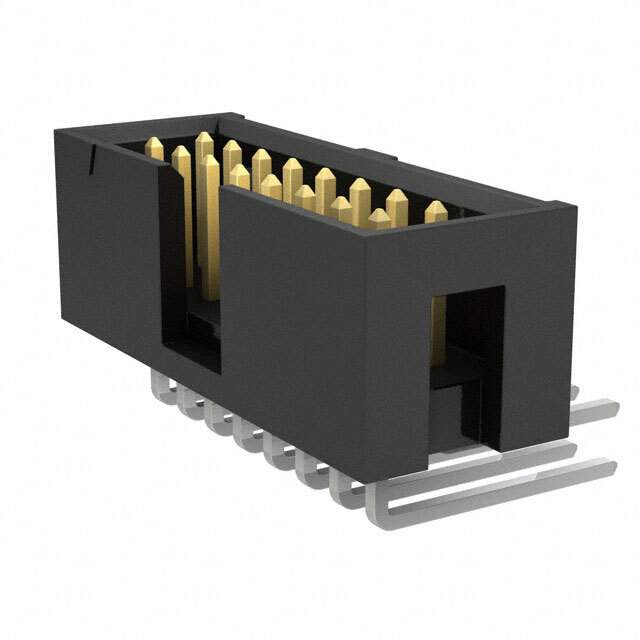

The Samtec Inc. Flex Stack TST series header connector is a male pin connector with a keying slot and through-hole, right-angle mounting style.

• Positions: 16 (dual-row)
• Pitch: 0.100" (2.54mm)
• Contact Material: Phosphor bronze
• Contact Finish-Mating: Gold, 30μin (0.76μm)
• Contact Finish-Post: Tin
• Shrouding: 4 walls
• Insulation Material: Polybutylene terephthalate (PBT), glass filled
• Insulation Color: Black
• Current Rating: 3.4A per contact
• Flammability Rating: UL94 V-0
• Contact Length-Mating: 0.250" (6.35mm)
• Contact Length-Post: 0.130" (3.30mm)
• Insulation Height: 0.365" (9.27mm)
• Halogen Free: Yes
• Packaging: Tube
• Alternative Parts: TST-108-04-G-D-RA, TST-108-04-H-D-RA, TST-108-04-T-D-RA
