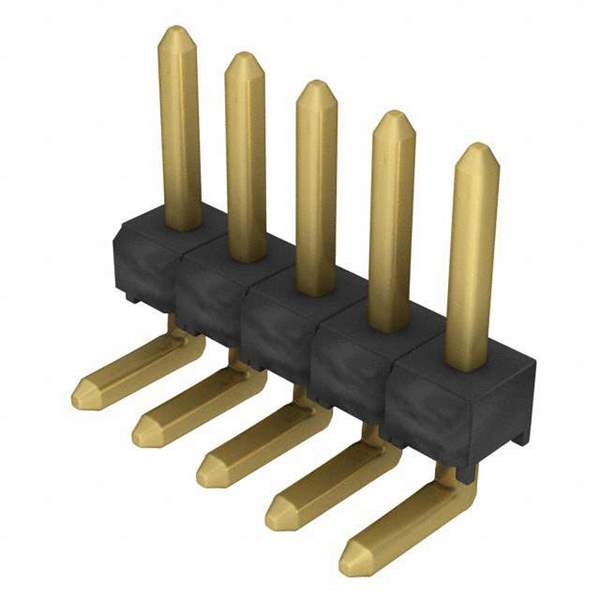

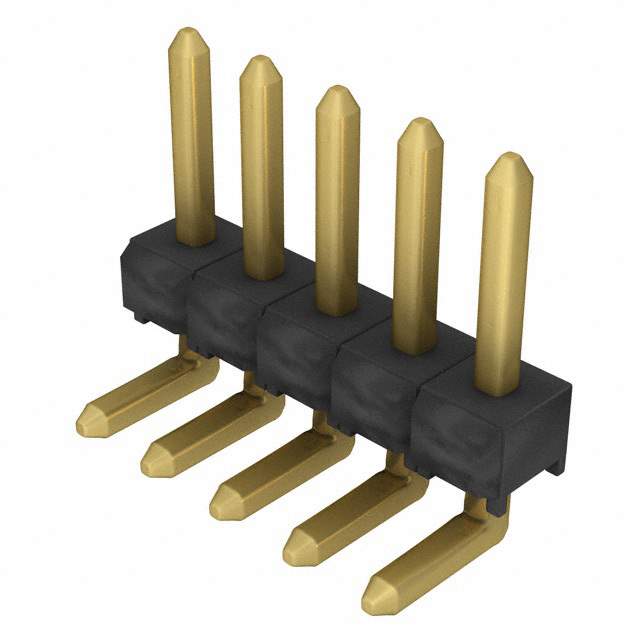

TSW-105-25-G-S-RA Real Image
Same model may have multiple batches, images only for reference.

TSW-105-25-G-S-RA

Part No TSW-105-25-G-S-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 5POS 2.54MM / Connector Header Through Hole, Right Angle 5 position 0.100" (2.54mm)
Datasheet
TSW-105-25-G-S-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TSW
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.320" (8.13mm)
Contact Length - Post 0.100" (2.54mm)
Insulation Height 0.119" (3.02mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number TSW-105
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1
Win Source Part Number 979781-TSW-105-25-G-S-RA
Ultra Librarian 3D Model Ultra Librarian TSW-105-25-G-S-RA CAD Model

Description

The TSW series from Samtec Inc. offers a rectangular connector with male pins.

  • Connector Type: Header
  • Features: None
  • Positions: Five
  • Rows: One
  • Positions Loaded: All
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Package: Bulk
  • Contact Material: Phosphor Bronze
  • Voltage Rating: Undefined
  • Mated Stacking Heights: Undefined
  • Ingress Protection: Undefined
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Pitch: 0.100" (2.54mm)
  • Shrouded: Unshrouded
  • Contact Finish: Gold
  • Contact Finish Thickness (Mating): 10.0μin (0.25μm)
  • Contact Finish Thickness (Post): 10.0μin (0.25μm)
  • Mounting Type: Through Hole, Right Angle
  • Standard Package: One
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Base Product Number: TSW-105
