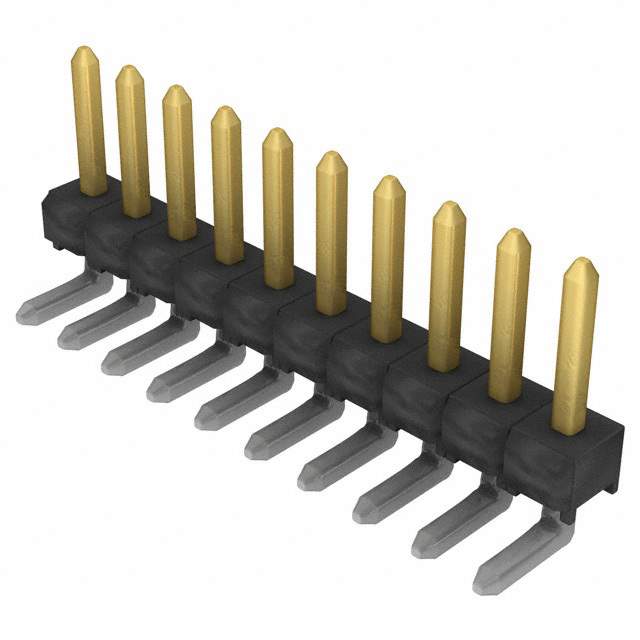

TSW-110-08-F-S-RA

Name: TSW-110-08-F-S-RA
Brand: Samtec Inc.
SKU: 1034162
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSW-110-08-F-S-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 10POS 2.54MM / Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
Datasheet	TSW-110-08-F-S-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSW
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.090" (2.29mm)
Insulation Height	0.119" (3.02mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSW-110
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM10353
Standard Package	1
Win Source Part Number	1034162-TSW-110-08-F-S-RA
Ultra Librarian 3D Model	Ultra Librarian TSW-110-08-F-S-RA CAD Model

Alternative Products

Description

The Samtec Inc. TSW-110-08-F-S-RA is a board to board or cable header connector with 10 male pins.

Mounting Type: Through Hole, Right Angle
Pitch: 0.100" (2.54mm)
Contact Finish: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Insulation Material: Polybutylene Terephthalate (PBT)
Material Flammability Rating: UL94 V-0
Contact Length - Mating: 0.230" (5.84mm)
Contact Length - Post: 0.090" (2.29mm)
Mechanical Life: 100,000 Cycles
Operating Temperature: -55°C to 125°C
REACH: Unaffected
ECCN: EAR99
