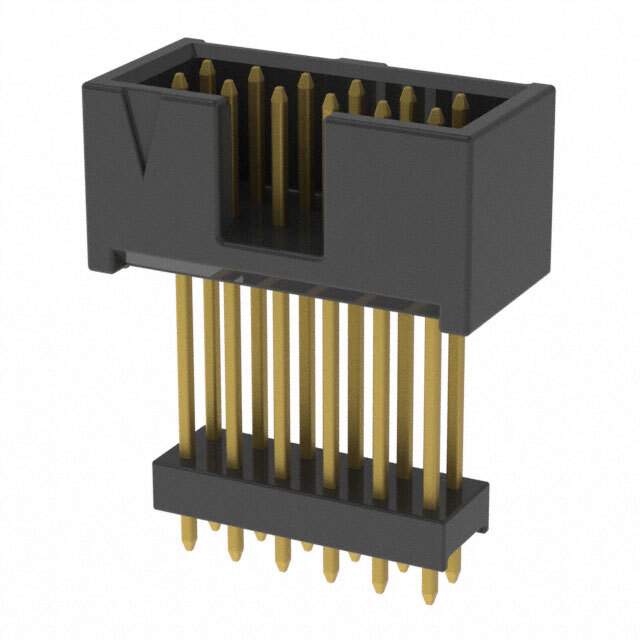

Same model may have multiple batches, images only for reference.

ZSS-106-04-G-D-840

Name: ZSS-106-04-G-D-840
Brand: Samtec Inc.
SKU: 1095999
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZSS-106-04-G-D-840
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR .100" 12POS / Connector Header Through Hole 12 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, ZSS
Package	Bulk
Connector Type	Header, Elevated
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Contact Length - Post	0.090" (2.29mm)
Overall Contact Length	0.930" (23.62mm)
Insulation Height	0.840" (21.34mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polyester, Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	ZSS-106
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1095999-ZSS-106-04-G-D-840
Ultra Librarian 3D Model	Ultra Librarian ZSS-106-04-G-D-840 CAD Model

Alternative Products

Description

The ZSS-106-04-G-D-840 is a rectangular connector header manufactured by Samtec Inc.

Positions: 12
Pitch-Mating: 0.100" (2.54mm)
Current Rating: 3A
Packaging: Bulk
Operating Temperature Range: -55°C to 125°C
Shrouded: Shrouded-4 wall
Alternative Parts: ZSS and TSW series
