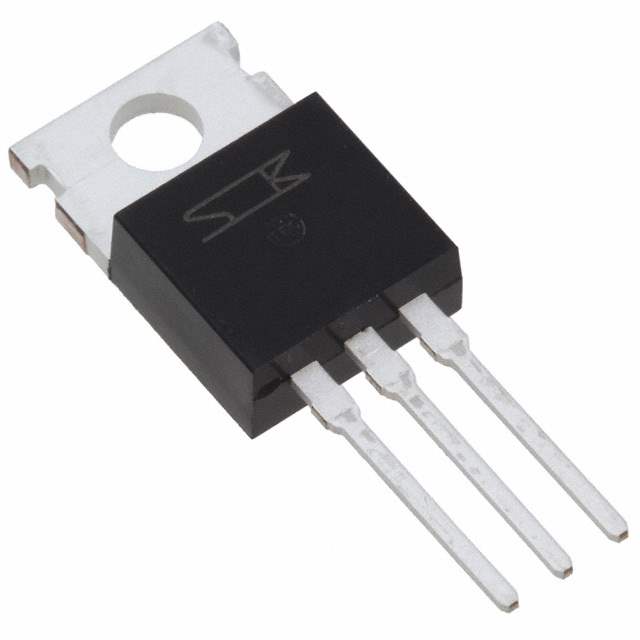

FMEN-2308 Real Image
Same model may have multiple batches, images only for reference.

FMEN-2308

Part No FMEN-2308
Manufacturer Sanken
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 80V 15A TO220F
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 80V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 765mV @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 300μA @ 80V
Operating Temperature - Junction -40°C to 150°C
Mounting Through Hole
Case / Package TO-220
Win Source Part Number 204230-FMEN-2308
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian FMEN-2308 CAD Model

Description

The Sanken FMEN-2308 is a Schottky diode that has a maximum DC reverse voltage of 80V.

  • Forward Voltage: 765mV @ 15A
  • Reverse Leakage Current: 300μA @ 80V
  • Diode Configuration: Common Cathode
  • Average Rectified Current: 15A per diode
  • Package: TO-220
  • Operating Temperature: -40°C to 150°C
  • Recovery Speed: 200mA (Io)
  • Market Popularity: Medium
