Same model may have multiple batches, images only for reference.

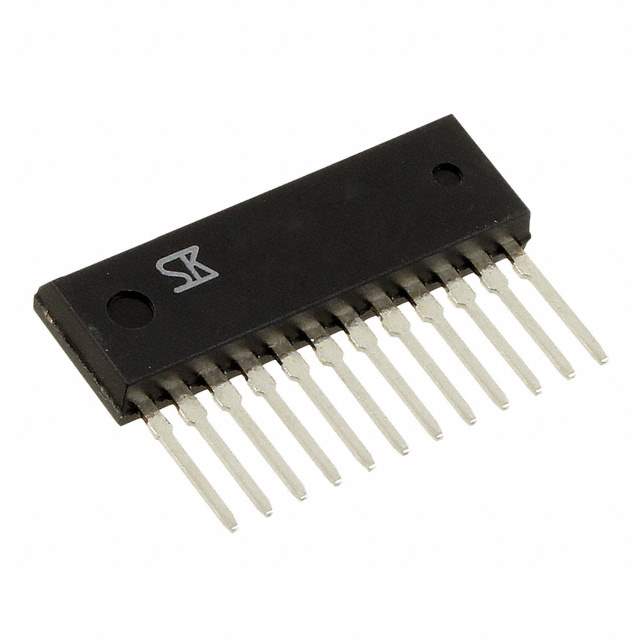

SMA4030 Real Image
Same model may have multiple batches, images only for reference.

SMA4030

Part No SMA4030
Manufacturer Sanken
Catalog Transistors (BJT) - Arrays
Description TRANS 4NPN DARL 100V 3A 12-SIP
Datasheet
SMA4030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Tube/Rail
Status Active
Transistor Polarity 4 NPN Darlington (Quad)
Maximum Current Collector 3A
VCEO Maximum Collector-Emitter Breakdown Voltage 100V
Max Vce (sat) 1.5V @ 3mA, 1.5A
Collector Cut-off Current(Max) 10μA (ICBO)
Typical Gain (hFE) (Min) 2000 @ 1.5A, 4V
Maximum Power Dissipation 4W
Frequency - Transition 40MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package 12-SIP
Win Source Part Number 046978-SMA4030
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMA4030 CAD Model

Description

This SMA4030 product with Win Source Part Number 046978-SMA4030 is an active product from Sanken. It belongs to the discrete semiconductor products category and comes in tube/rail packaging suitable for through-hole mounting.

  • Frequency-Transition: 40MHz
  • Transistor Polarity: 4 NPN Darlington (Quad)
  • Maximum Current Collector: 3A
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 100V
  • Maximum Power Dissipation: 4W
  • Temperature Range: -55°C ~ 150°C (TJ)
  • Case/Package: 12-SIP
