Same model may have multiple batches, images only for reference.

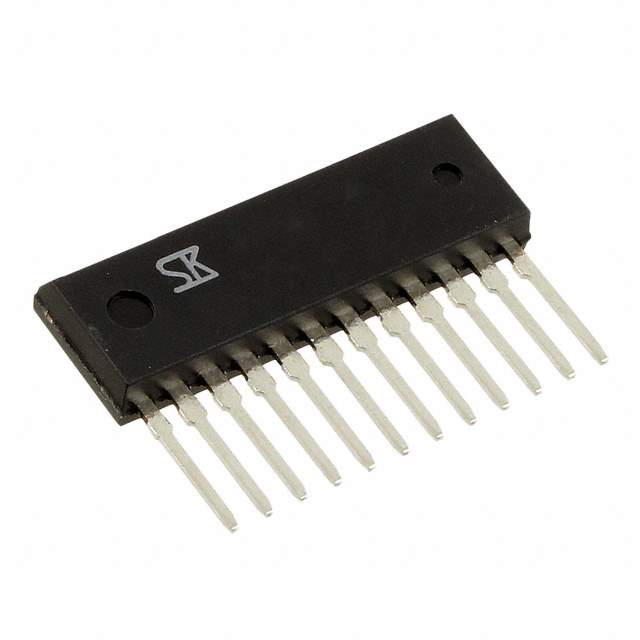

SMA5117 Real Image
Same model may have multiple batches, images only for reference.

SMA5117

Part No SMA5117
Manufacturer Sanken
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 6N-CH 250V 7A 12-SIP
Datasheet
SMA5117 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Tube/Rail
Status Active
FET Type 6 N-Channel (3-Phase Bridge)
FET Feature Standard
Drain-Source Breakdown Voltage 250V
Continuous Drain Current at 25°C 7A
Maximum Rds On at Id,Vgs 250 mOhm @ 3.5A, 10V
Gate-Source Threshold Voltage 4V @ 1mA
Max Input Capacitance 850pF @ 10V
Maximum Power Dissipation 4W
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package 12-SIP
Win Source Part Number 211784-SMA5117
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SMA5117 CAD Model

Description

The Sanken SMA5117 is a medium popularity electronic component that is in limited supply and demand status.

  • FET Type: 6 N-Channel (3-Phase Bridge)
  • FET Feature: Standard
  • Package: 12-SIP
  • Maximum Power Dissipation: 4W
