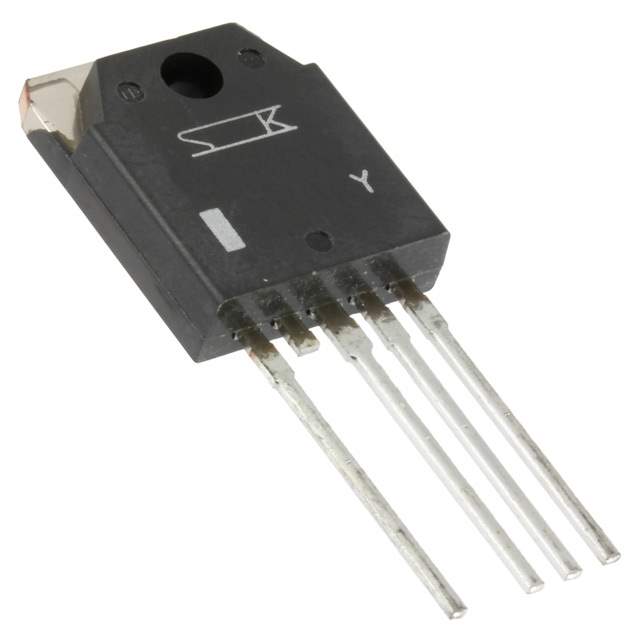

STD03P Real Image
Same model may have multiple batches, images only for reference.

STD03P

Part No STD03P
Manufacturer Sanken
Catalog Transistors (BJT) - Single
Description Darlington Transistors for Audio Amplifiers | TRANS PNP DARL 160V 15A TO-3P-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Transistor Type PNP - Darlington
Current - Collector (Ic) (Maximum) 15A
Voltage - Collector Emitter Breakdown (Maximum) 160V
Vce Saturation (Maximum) at Ib, Ic 2V at 10mA, 10A
Current - Collector Cutoff (Maximum) 100μA (ICBO)
DC Current Gain (hFE) (Minimum) at Ic, Vce 5000 at 10A, 4V
Maximum Power 160W
Temperature Range - Operating 150°C
Mounting Style Through Hole
Manufacturer Package TO-3P-5
Supplier Device Package TO-3P-5L
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 720583-STD03P
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STD03P CAD Model

Description

The Sanken 720583-STD03P is a PNP Darlington transistor designed for use in discrete semiconductor products.

  • Mounting Type: through-hole
  • Maximum Collector Current: 15A
  • Maximum Collector-Emitter Breakdown Voltage: 160V
  • Package: TO-3P-5L
  • Current Cutoff: 100μA (ICBO)
  • DC Current Gain (hFE): 5000 @ 10A and 4V
  • Vce Saturation: 2V @ 10mA and 10A
  • Maximum Power: 160W
  • Operating Temperature Range: -40°C to 85°C
  • Packaging: bulk
  • Manufacturer Pack Quantity: 30
