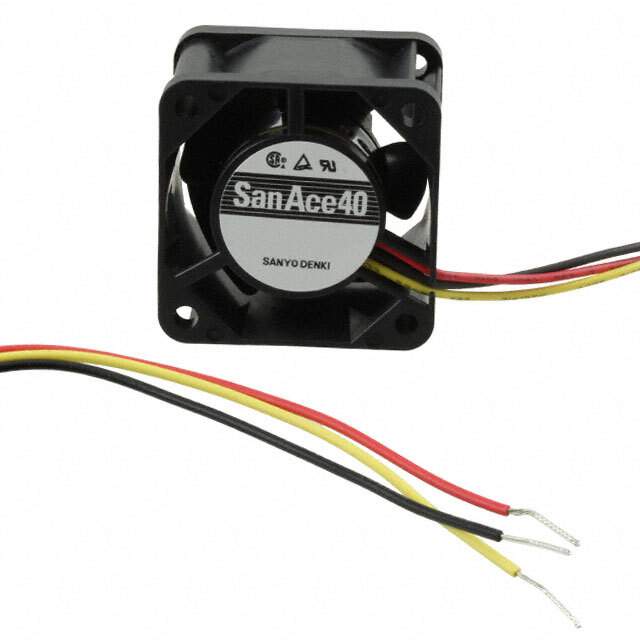

109P0424H301 Real Image
Same model may have multiple batches, images only for reference.

109P0424H301

Part No 109P0424H301
Manufacturer Sanyo Denki America Inc.
Catalog DC Fans
Description FAN 40X28MM 24VDC TACH / Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 3 Wire Leads
Datasheet
109P0424H301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 40
Package Box
Voltage - Rated 24VDC
Dimension Square - 40mm L x 40mm H
Width 28.00mm
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 37.0dB(A)
Power (Watts) 2.28 W
RPM 8700 RPM
Termination 3 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.115 lb (52.16 g)
Current Rating (Amps) 0.140A
Voltage Range 12 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Base Product Number 109P0424
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Other Names 1688-1125
Standard Package 126
Win Source Part Number 1228035-109P0424H301
Ultra Librarian 3D Model Ultra Librarian 109P0424H301 CAD Model

Description

The San Ace 40 series of DC brushless fans (BLDC) from Sanyo Denki America Inc. is a compact cooling solution for electronic equipment. With a voltage rating of 24VDC, the fan has a power consumption of 2.28 Watts and a noise level of 37.0dB(A).

  • Series: San Ace 40
  • Voltage Rating: 24VDC
  • Power Consumption: 2.28 Watts
  • Noise Level: 37.0dB(A)
  • Size: 40mm L x 40mm H
  • Weight: 0.115 lb (52.16 g)
  • Speed: 8700 RPM
  • Standard Package: 126
  • Features: Locked Rotor Protection, Speed Sensor (Tach)
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
  • Approvals: CSA, TUV, UL
  • ECCN: EAR99
