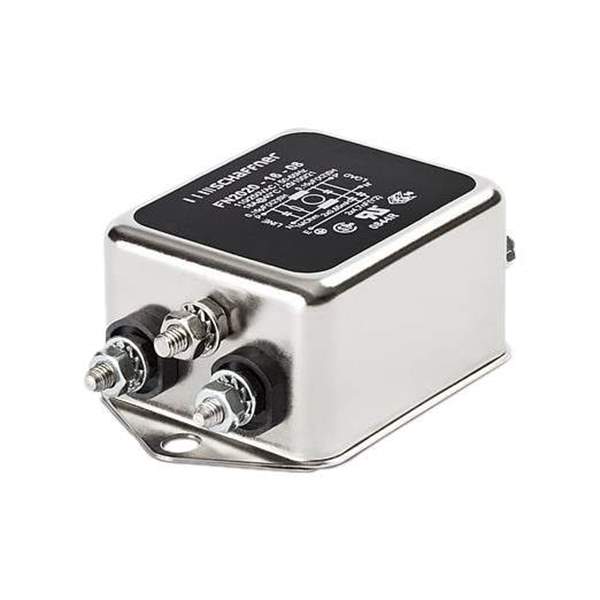

FN2020B-6-06 Real Image
Same model may have multiple batches, images only for reference.

FN2020B-6-06

Part No FN2020B-6-06
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VAC 6A CHASS MNT
Datasheet
FN2020B-6-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 9 Weeks
Features Single Phase EMC/EMI Line Filter 250VAC DC ~ 400Hz Single Stage Quick Connect
Manufacturer Schaffner EMC Inc.
Series FN 2020
Package Tray
Operating Temperature Range -25°C ~ 100°C
Mounting Chassis Mount
Family Name FN2020
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Part Number 817-1877, 800767, FN2020B-6-06-ND, 293-453
Quantity per package 60
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872109-FN2020B-6-06
Ultra Librarian 3D Model Ultra Librarian FN2020B-6-06 CAD Model

Description

The Schaffner EMC Inc. FN 2020 series component with Win Source Part Number 872109-FN2020B-6-06 is a single-phase EMC/EMI Line Filter.

  • Design: 250VAC DC ~ 400Hz Single Stage Quick Connect
  • Package: Tray
  • Mounting: Chassis Mount
  • Family Name: FN2020
  • Categories: Filters
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Quantity per Package: 60
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 9 weeks
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.30.8000
  • Other Part Numbers: 817-1877, 800767, FN2020B-6-06-ND, and 293-453
