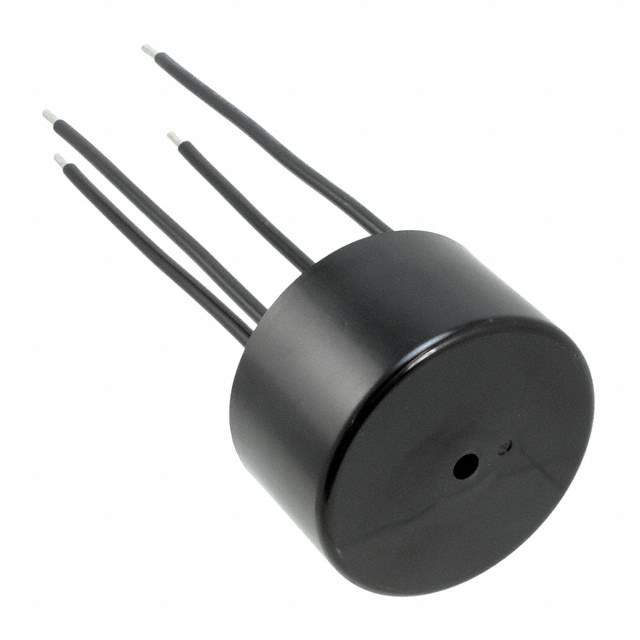

RD7127-6-25M0 Real Image
Same model may have multiple batches, images only for reference.

RD7127-6-25M0

Part No RD7127-6-25M0
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 25MH 6A 2LN TH / 25 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 6A (Typ) DCR 84.2mOhm (Typ)
Datasheet
RD7127-6-25M0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Schaffner EMC Inc.
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 25 mH @ 400 Hz
Current Rating (Max) 6A (Typ)
DC Resistance (DCR) (Max) 84.2mOhm (Typ)
Voltage Rating - DC 850V
Voltage Rating - AC 600V
Temperature Range - Operating -25°C ~ 110°C
Mounting Through Hole
Size / Dimension 2.756" L x 2.756" W (70.00mm x 70.00mm)
Height (Max) 1.594" (40.50mm)
Case / Package Horizontal, 4 PC Pin
Base Product Number RD7127
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 817-2023,RD7127-6-25M0-ND,292-139,800659
Standard Package 50
Win Source Part Number 1328236-RD7127-6-25M0
Ultra Librarian 3D Model Ultra Librarian RD7127-6-25M0 CAD Model

Description

The Schaffner EMC Inc. common mode choke is a power line filter designed to reduce electromagnetic interference in electronic systems.

  • Voltage Rating: 600V AC and 850V DC
  • Current Rating: 6A (typ)
  • Inductance: 25 mH @ 400 Hz
  • DC Resistance (DCR): 84.2mOhm (typ)
  • Mounting: Through hole
  • Height: 1.594" (40.50mm)
  • Package: Horizontal, 4 PC pin
  • Units per package: 50
  • Compliance: RoHS3 compliant
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8548.00.0000
