Same model may have multiple batches, images only for reference.

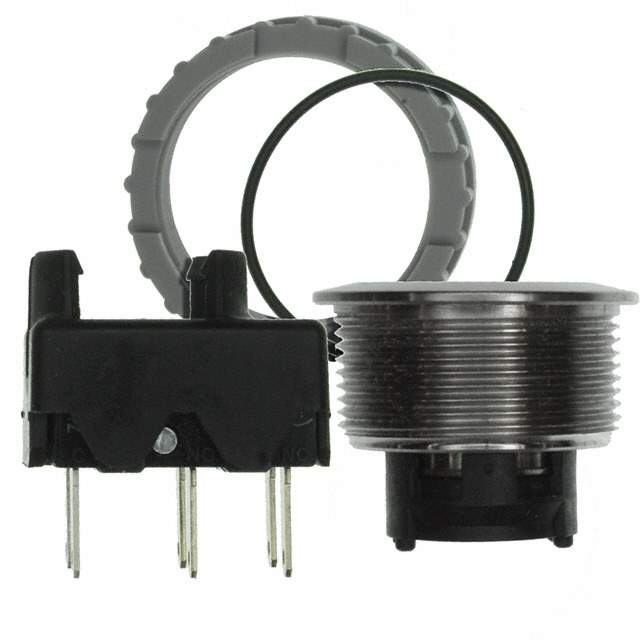

1241.6931.1120000 Real Image
Same model may have multiple batches, images only for reference.

1241.6931.1120000

Part No 1241.6931.1120000
Manufacturer Schurter Inc.
Catalog Pushbutton Switches
Description Switch Push Button N.O./N.C. DPDT Flush Round Button 5A 250VAC Panel Mount Quick Connect Box
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Material Stainless Steel
Mounting SMD (SMT)
Case / Package 125
Contact Current Rating 10 A
Contact Material Silver
Current Rating 5 A
Depth 27.6 mm
Electrical Life 200 kcycles
Housing Material Stainless Steel
Illumination Type Illuminated
Insulation Resistance 100 MΩ
Length 27.6 mm
Material Stainless Steel
Max Current Rating 5 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Mechanical Life 1.5 Mcycles
Min Operating Temperature -25 °C
Mount Front, Panel
Number of Positions 2
Operating Force 5 N
Radiation Hardening No
Ratings IP40, IP67
REACH SVHC No SVHC
RoHS Compliant
Switch Function On-Mom
Termination Quick Connect
Throw Configuration DP, DPDT
Voltage Rating (AC) 125 V
Win Source Part Number 1039820-1241.6931.1120000
Categories Pushbutton Switches
Manufacturer Schurter Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 1241.6931.1120000 CAD Model

Description

The 1039820-1241.6931.1120000 is a pushbutton switch manufactured by Schurter Inc.

  • Positions: 2
  • Termination: Quick Connect
  • Contact Material: Silver
  • Current Rating: 5A
  • Electrical Life: 200 kcycles
  • Mechanical Life: 1.5 Mcycles
  • Material: Stainless Steel
  • Illumination Type: Illuminated
  • IP Rating: IP40 and IP67
  • Rating: On-Mom
  • Operating Force: 5N
  • Insulation Resistance: 100 MΩ
