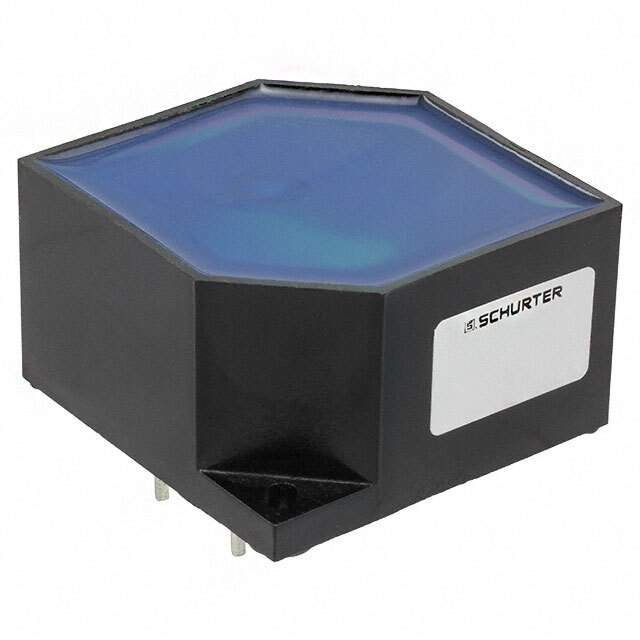

DKIL-0246-2001 Real Image
Same model may have multiple batches, images only for reference.

DKIL-0246-2001

Part No DKIL-0246-2001
Manufacturer Schurter Inc.
Catalog Common Mode Chokes
Description CMC 20A 2LN TH / 2 Line Common Mode Choke Through Hole 20A DCR 6mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr SCHURTER Inc.
Series DKIL-1
Package Bulk
Product Status Obsolete
Number of Lines 2
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 6mOhm
Voltage Rating - DC 760V
Voltage Rating - AC 540V
Temperature Range - Operating -25°C ~ 100°C
Approval Agency UR
Mounting Type Through Hole
Size / Dimension 1.969" L x 1.969" W (50.00mm x 50.00mm)
Package / Case Radial
Standard Package 10
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1339831-DKIL-0246-2001
Ultra Librarian 3D Model Ultra Librarian DKIL-0246-2001 CAD Model

Description

The SCHURTER DKIL-1 series common mode choke is a filter with a radial package type.

  • Voltage Rating: 540VAC / 760VDC
  • Current Rating: 20A
  • Filter Type: Undefined
  • Lines: 2
  • Size: 1.969" L x 1.969" W (50.00mm x 50.00mm)
  • DC Resistance (DCR): 6mOhm
  • Mounting Type: Through Hole
  • Series: DKIL-1
  • Status: Obsolete
  • Package Type: Bulk
  • Operating Temperature: -25°C to 100°C
