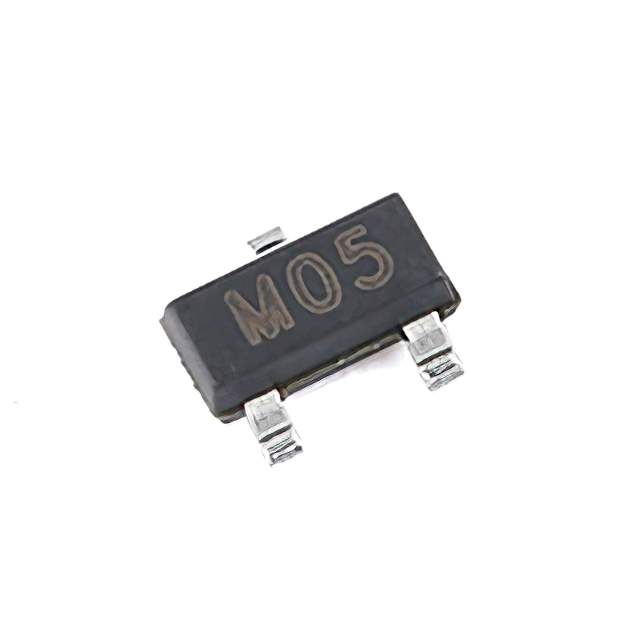

SM05 Real Image
Same model may have multiple batches, images only for reference.

SM05

Part No SM05
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS Diode Array
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Semtech Corporation
Win Source Part Number 1250755-SM05
Manufacturer Homepage www.semtech.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Automation & Process Control, Portable Devices, Industrial
Ultra Librarian 3D Model Ultra Librarian SM05 CAD Model

Description

The Semtech Corporation SM05 is a Zener type device that comes in a reel package.

  • Voltage - Reverse Standoff (Max): 3V
  • Current - Peak Pulse (8/20µs): 5A
  • Power - Peak Pulse: 40W
  • Capacitance @ Frequency: 25pF @ 1MHz
  • Operating Temperature: -40°C to 85°C (TJ)
  • Voltage - Breakdown (Min): 3.1V
  • Voltage - Clamping (Max) @ Ipp: 8V
  • Number of Channels: 1
  • Channel Type: Unidirectional
  • Applications: Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Automation & Process Control, Portable Devices, and Industrial applications
